Ao Pro series
Outdoor

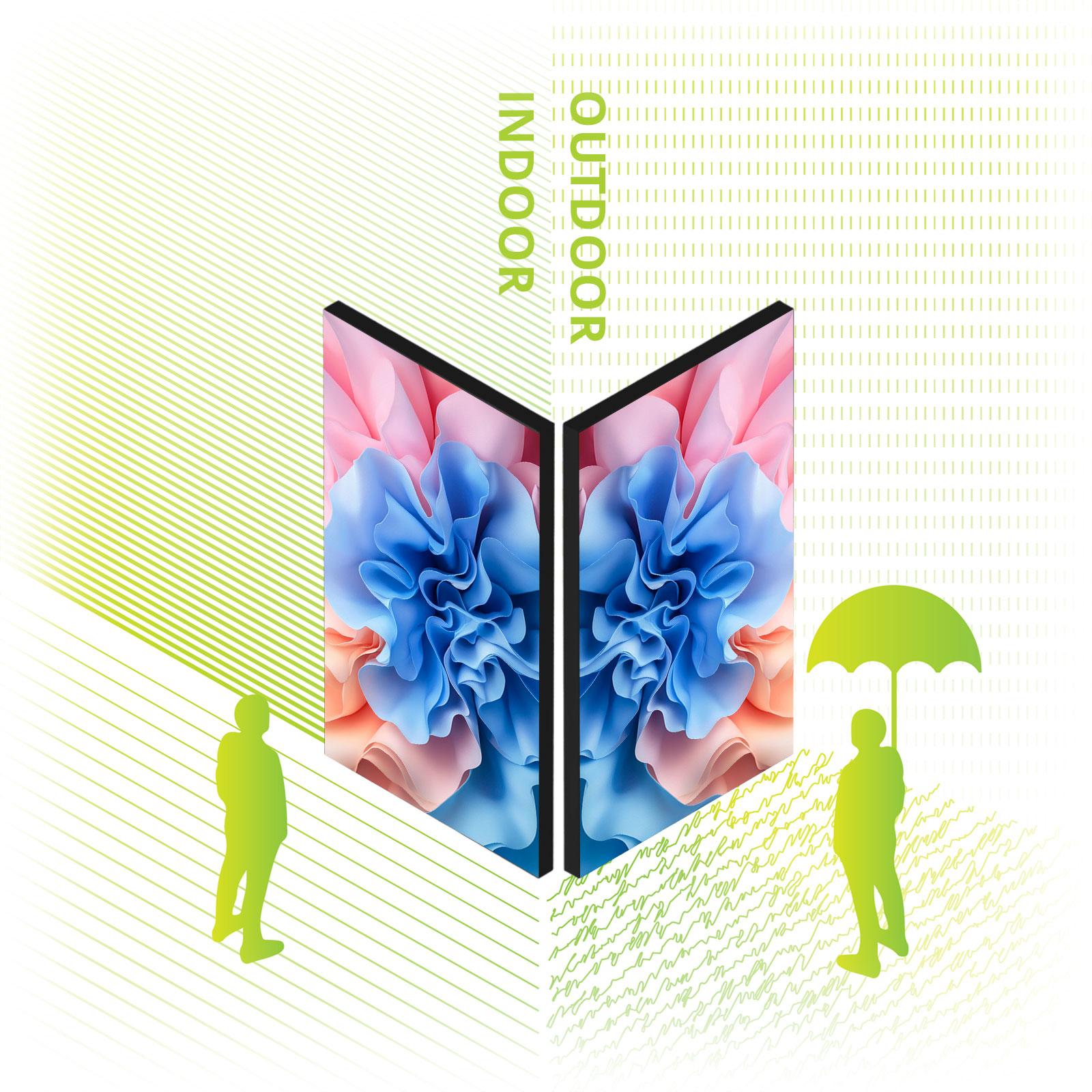

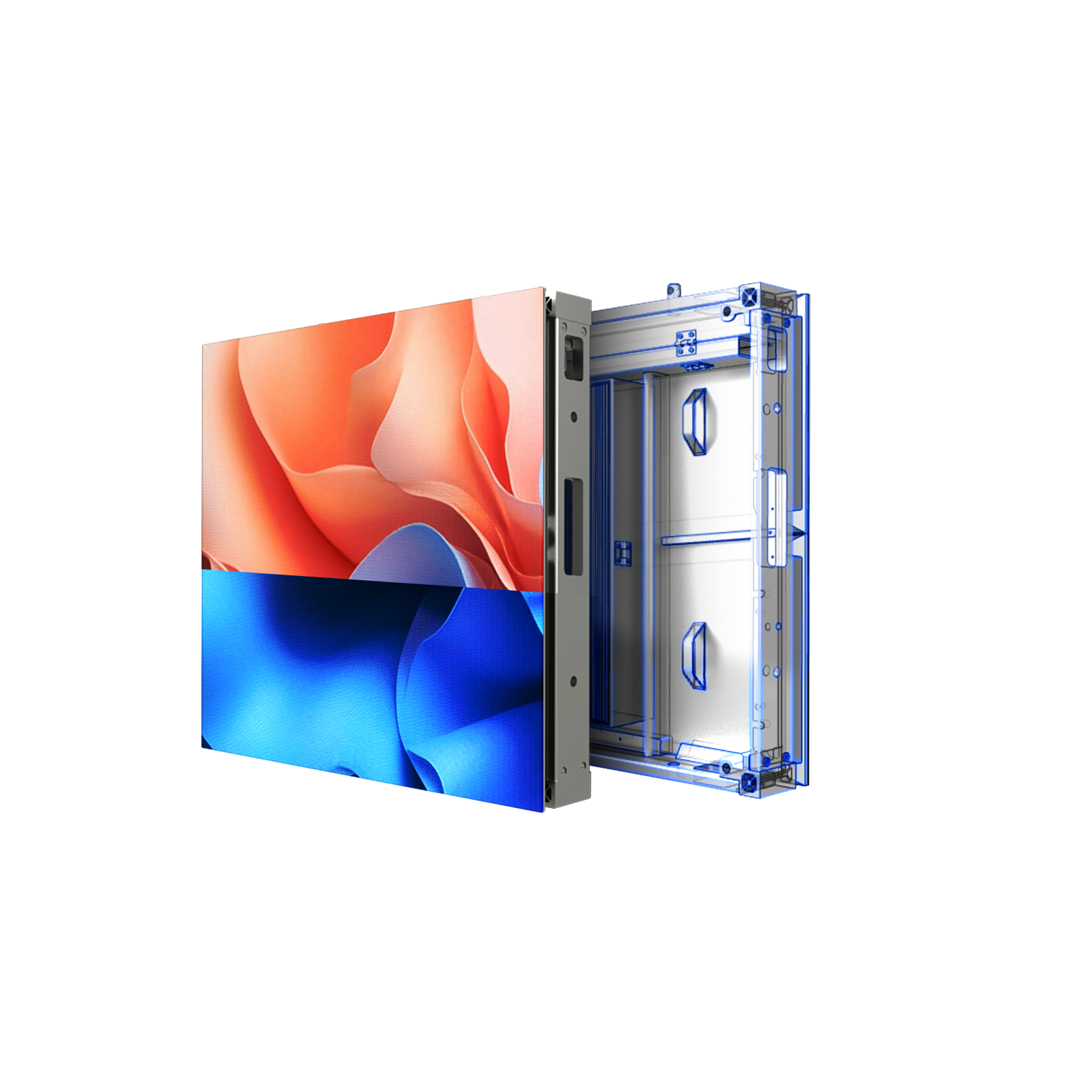

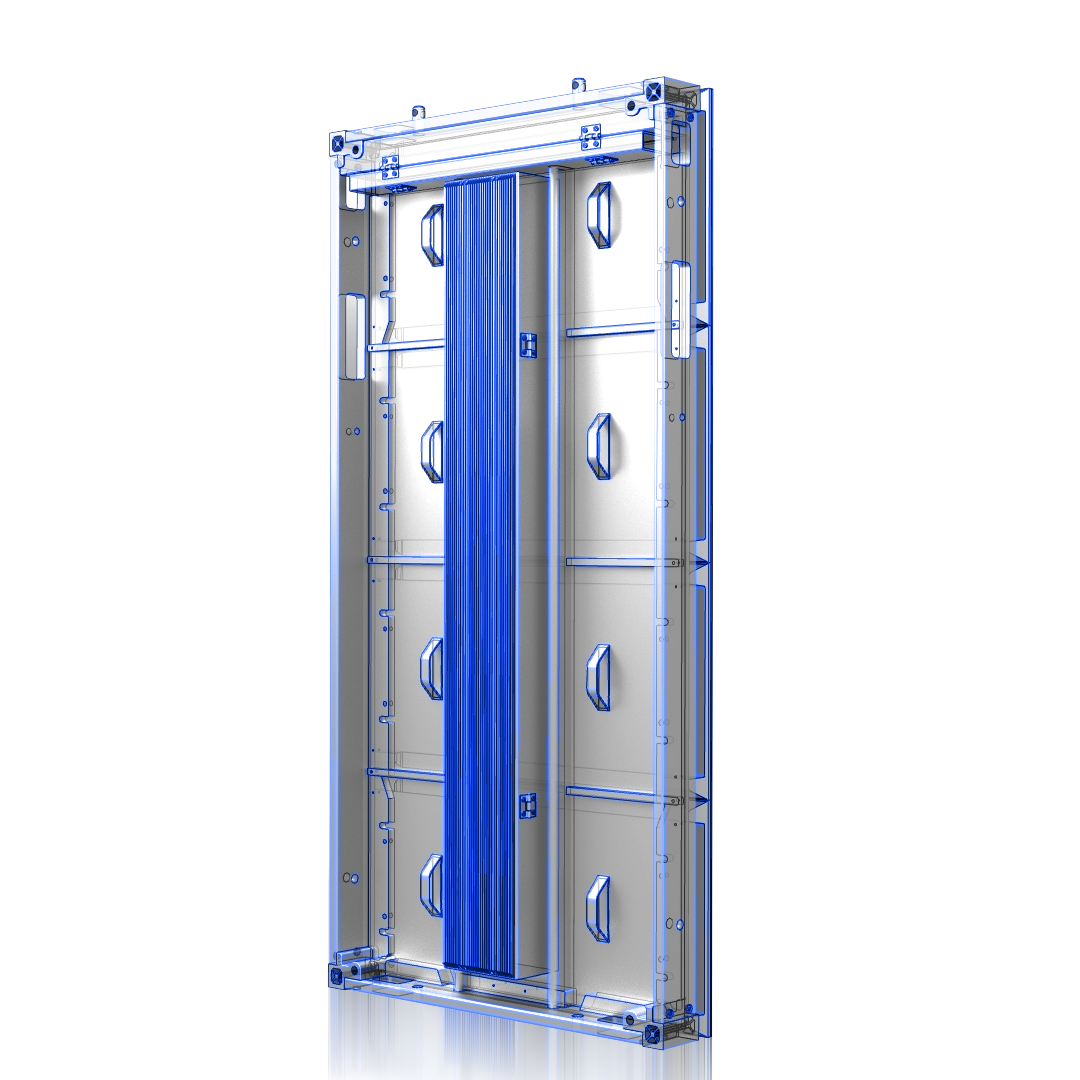

Outdoor/Indoor Led Display, alta luminosità, manutenzione anteriore e posteriore, struttura compatta e resistente.
Applicazione: Retail, Advertising, Digital Led signage.
Caratteristiche.
- Waterproof
- High Refresh Rate

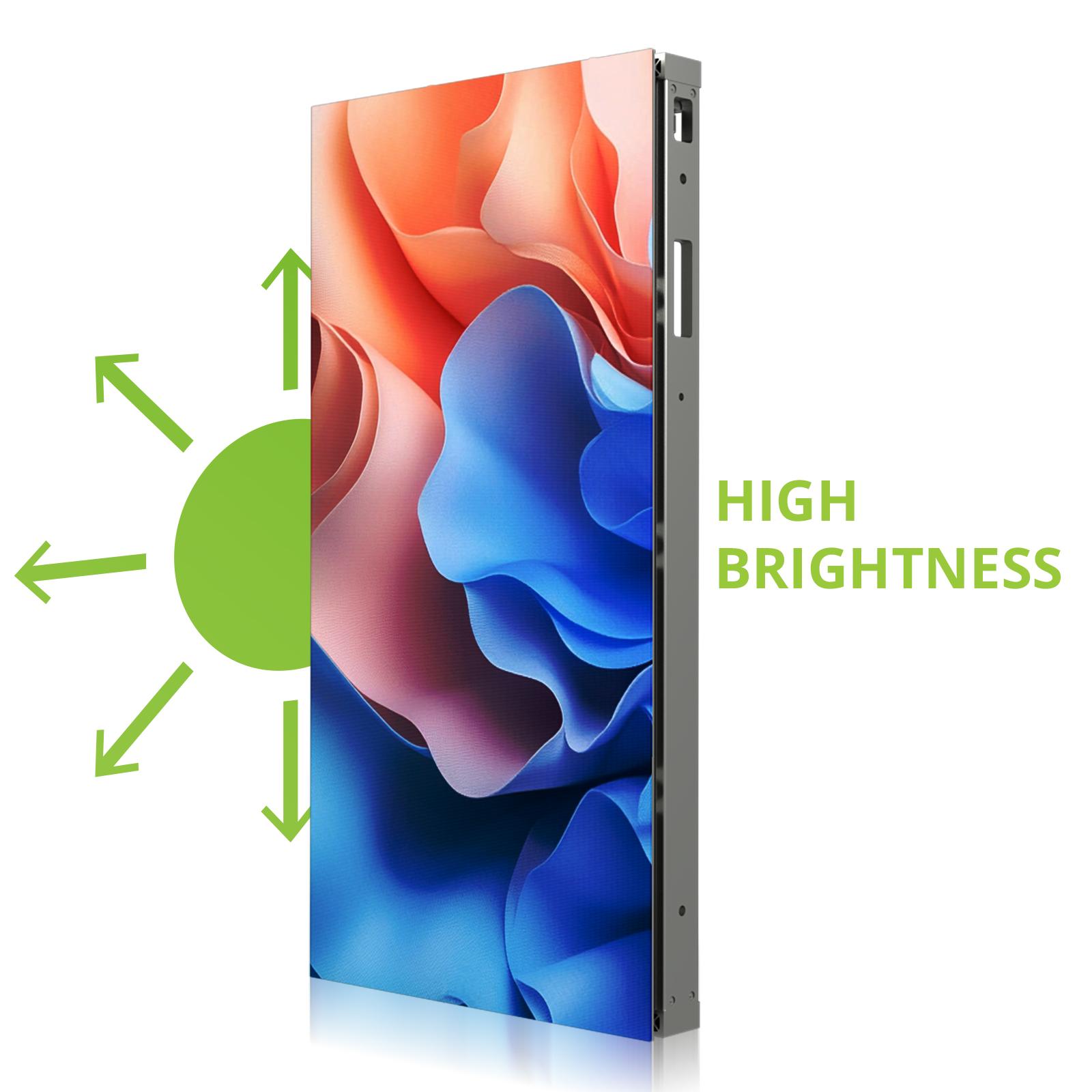

- High Brightness
- Ultra Thin
- Mixed Splicing

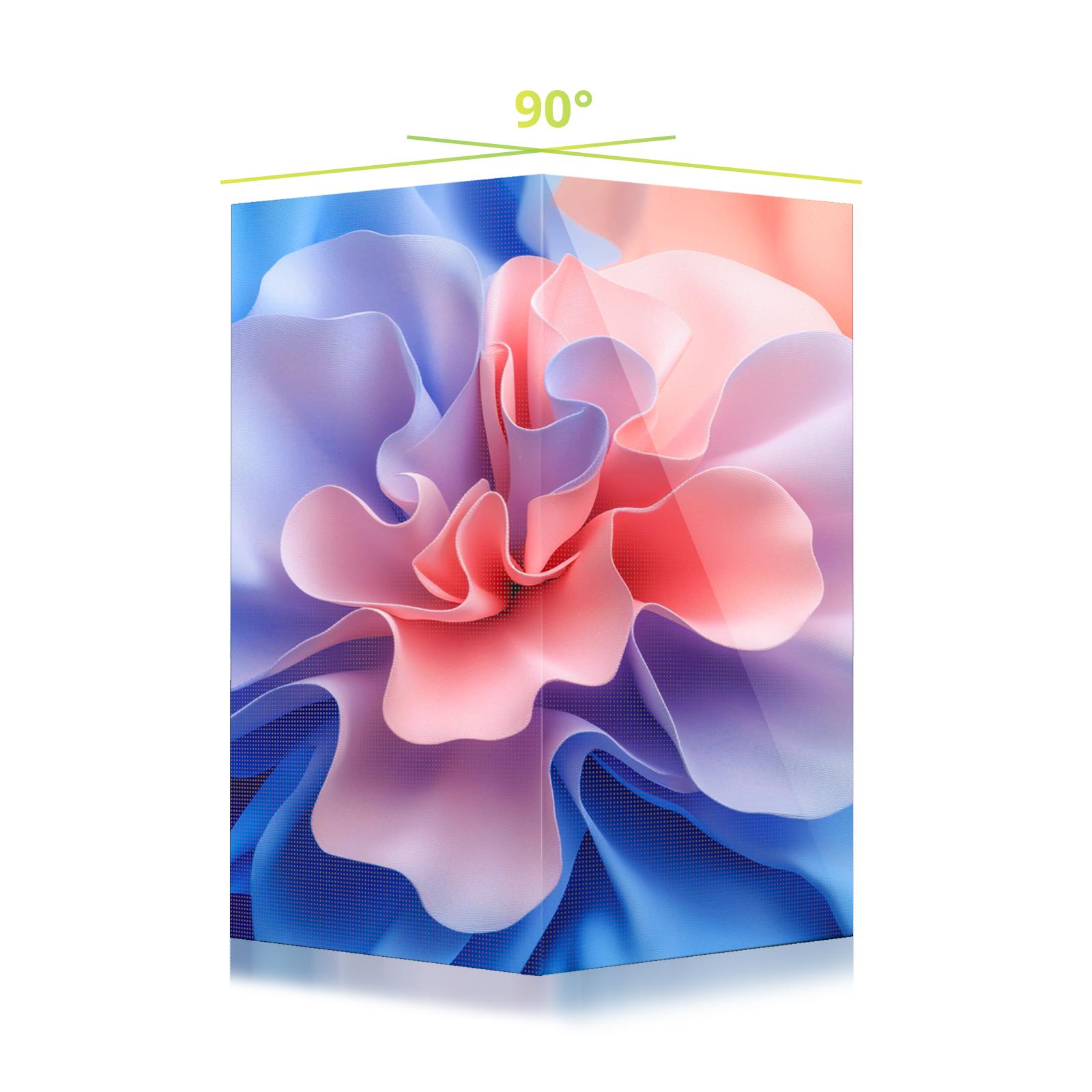

- Right Angle Splicing
Specifiche.
Ao PRO 2.9-50100 UNIAOPO2.9-50100
Ao PRO 3.9-50100 UNIAOPO3.9-50100
Ao PRO 6.8-50100 UNIAOPO6.8-50100
Ao PRO 2.9-5050 UNIAOPO2.9-5050
Ao PRO 3.9-5050 UNIAOPO3.9-5050
Ao PRO 6.8-5050 UNIAOPO6.8-5050
Ao PRO ECO 2.9-5050 UNIAOPOECO2.9-5050
Ao PRO ECO+ 3.9-5050 UNIAOPOECO+3.9-5050
Ao PRO ECO 3.9-5050 UNIAOPOECO3.9-5050
Ao PRO ECO+ 3.9-50100 UNIAOPOECO+3.9-50100
Ao PRO ECO 3.9-50100 UNIAOPOECO3.9-50100
Ao PRO ECO+ 3.9-5075 UNIAOPOECO+3.9-5075
Ao PRO ECO 3.9-5075 UNIAOPOECO3.9-5075
Ao PRO ECO+ 3.9-10050 UNIAOPOECO+3.9-10050
Ao PRO ECO+ 3.9-10075 UNIAOPOECO+3.9-10075
Ao PRO ECO+ 3.9-100100 UNIAOPOECO+3.9-100100
Ao PRO ECO+ 3.9-15050 UNIAOPOECO+3.9-15050
Ao PRO ECO+ 3.9-15075 UNIAOPOECO+3.9-15075
Ao PRO ECO+ 3.9-150100 UNIAOPOECO+3.9-150100
Titolo
Pixel Pitch
Pixel Density
Led Type
Module Resolution
Module Size
Cabinet Resolution
Cabinet Size
Cabinet Weight
Brightness
View Angle
Max Power Consumption
Ave. Power Consumption
Input Voltage
Refresh Rate
Gray Scale
Installation Method
IP Level
Ao PRO 2.9-50100 UNIAOPO2.9-50100
2.97 mm
112896 dots/mq
SMD1515
168*84 dots
500*250 mm
56448 dots

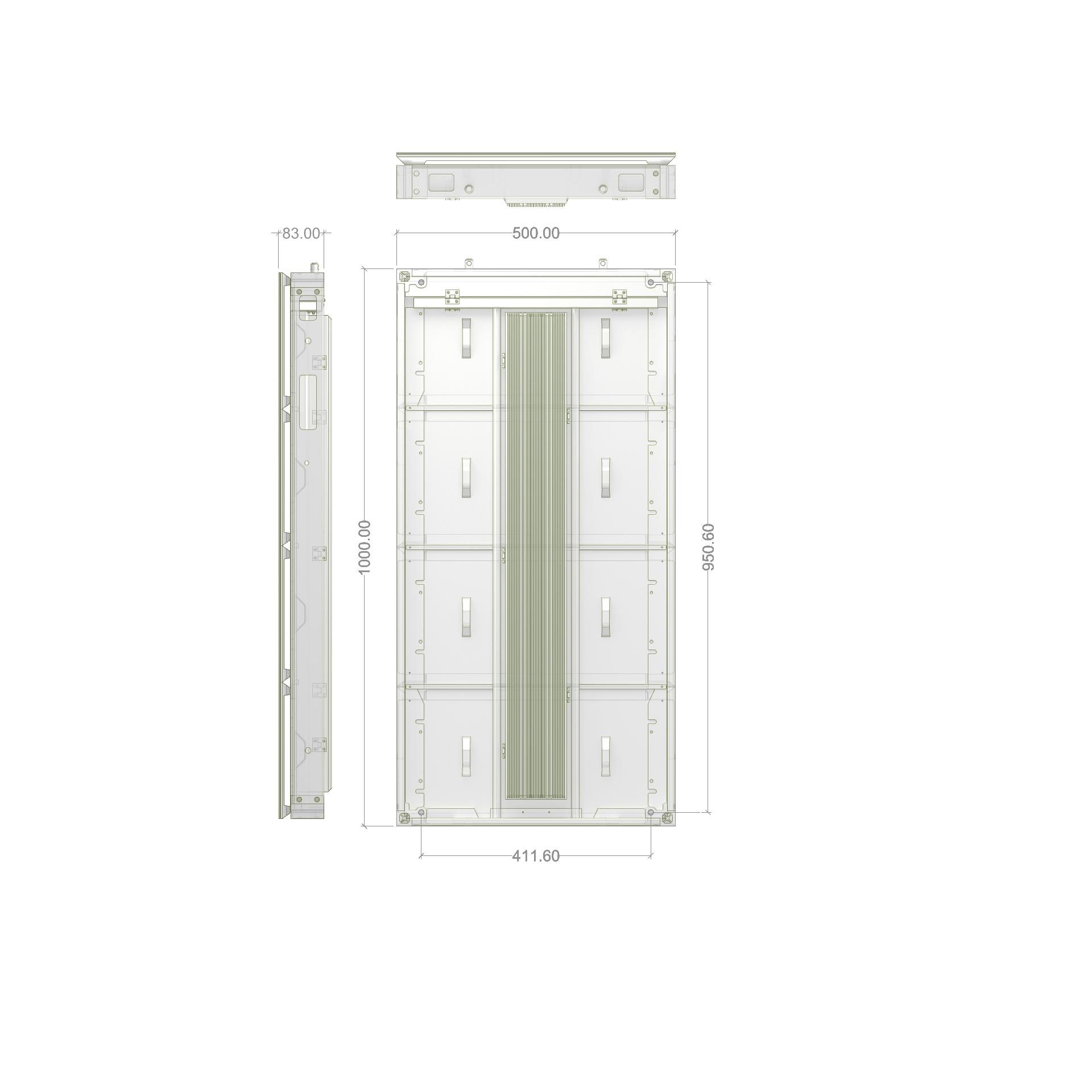

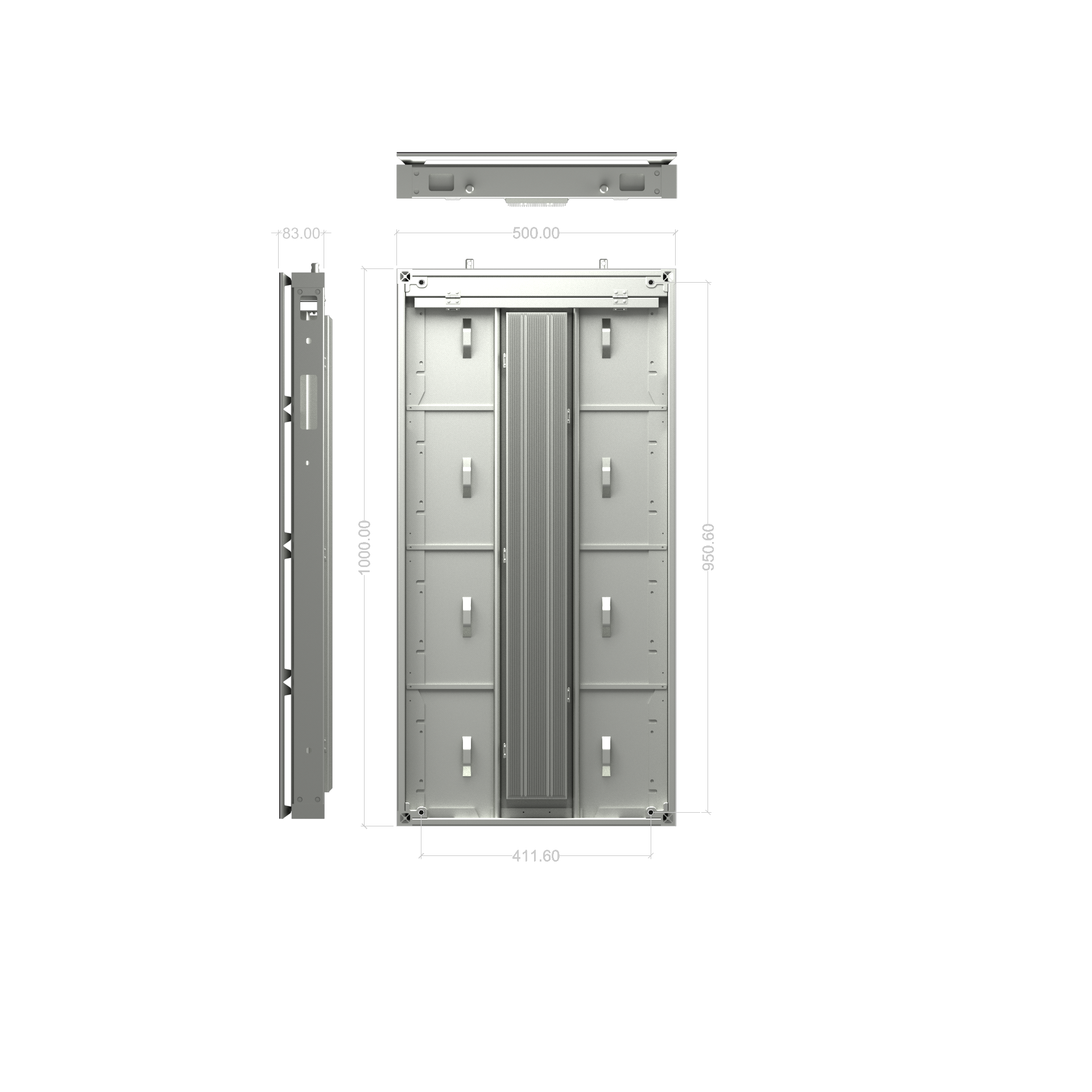

500*1000*83 mm
17 Kg
4500 cd/mq
160°(O)/90°(V)
700 W/mq
280 W/mq
AC220V
3840 HZ
14 bit
Front/Back Service
IP66
Ao PRO 3.9-50100 UNIAOPO3.9-50100
3.91 mm
65536 dots/mq
SMD1921
128*64 dots
500*250 mm
32768 dots
500*1000*83 mm
17 Kg
5000 cd/mq
160°(O)/90°(V)
760 W/mq
300 W/mq
AC220V
3840 Hz
14 bit
Front/Back Service
IP66
Ao PRO 6.8-50100 UNIAOPO6.8-50100
6.8 mm
21312 W/mq
SMD1921
74*36 dots
500*250 mm
10656 dots
500*1000*83 mm
17 Kg
10000 cd/mq
160°(O)/90°(V)
1200 W/mq
600 W/mq
AC220V
3840 Hz
14 bit
Front/Back Service
IP66
Ao PRO 2.9-5050 UNIAOPO2.9-5050
2.97 mm
112896 dots/mq
SMD1515
84*84 dots
250*250 mm
28224 dots

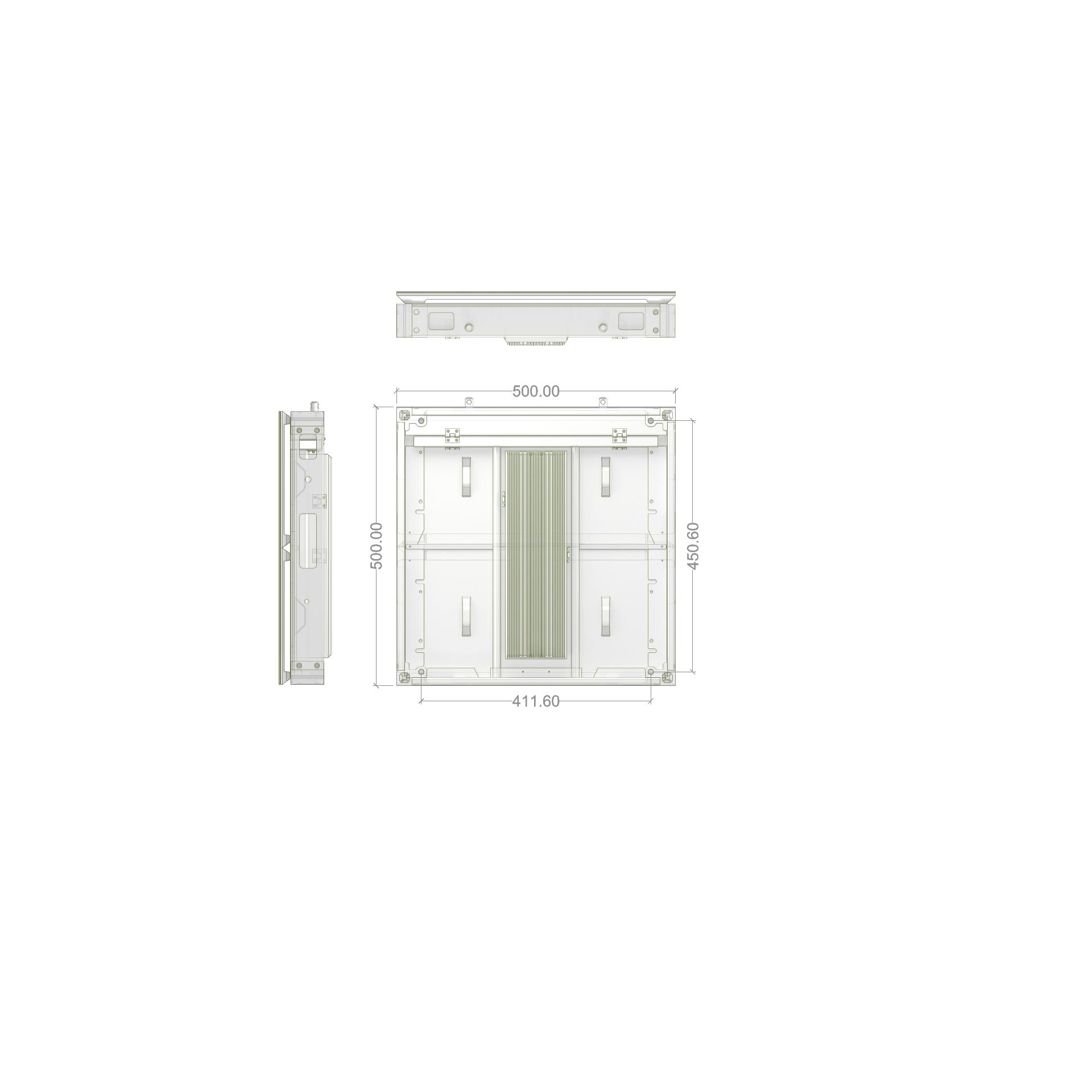

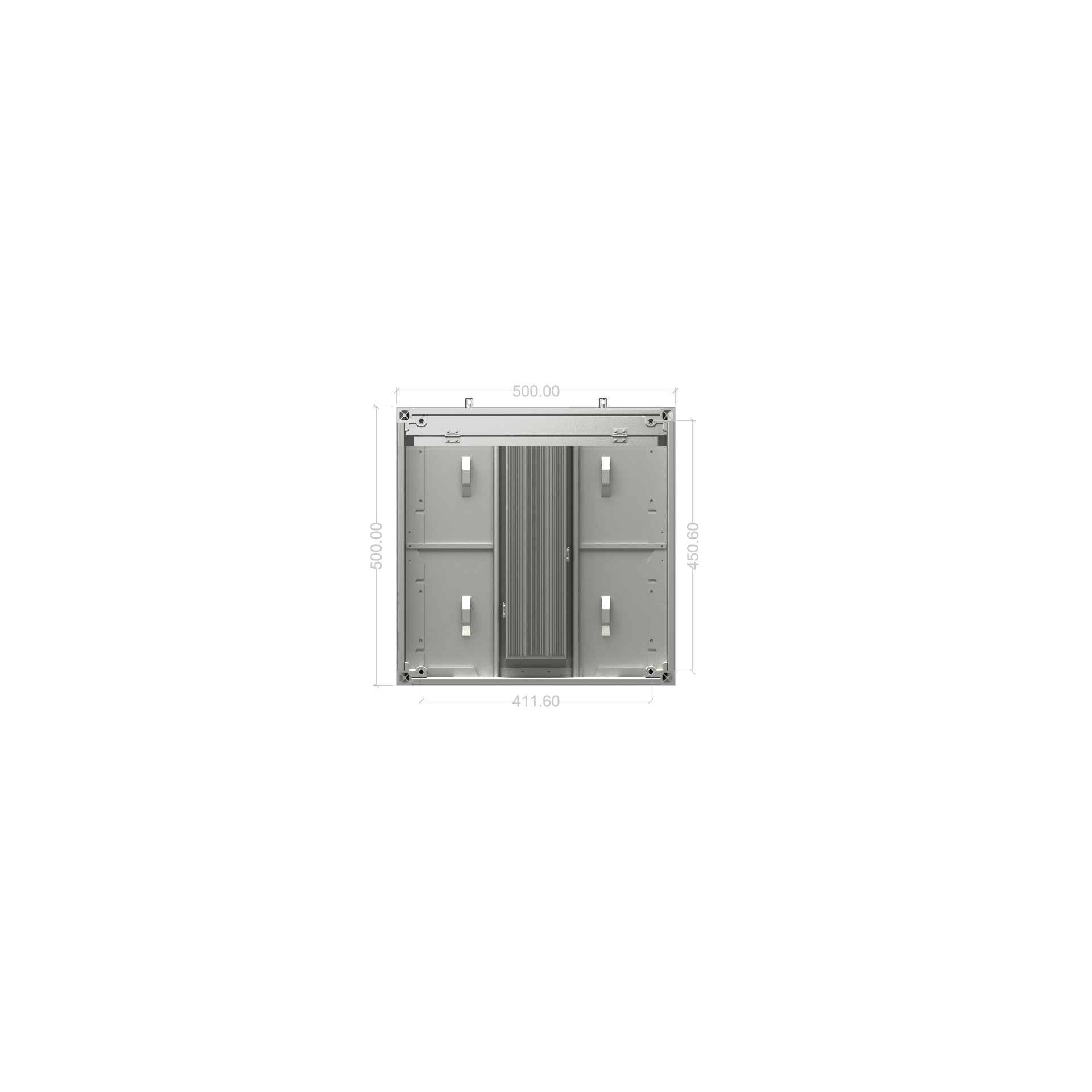

500*500*83 mm
8.5 Kg
4500 cd/mq
160°(O)/90°(V)
700 W/mq
280 W/mq
AC220V
3840 Hz
14 bit
Front/Back Service
IP66
Ao PRO 3.9-5050 UNIAOPO3.9-5050
3.91 mm
65536 dots/mq
SMD1921
64*64 dots
250*250 mm
16384 dots
500*500*83 mm
8.5 Kg
5000 cd/mq
160°(O)/90°(V)
760 W/mq
300 W/mq
AC220V
3840 Hz
14 bit
Front/Back Service
IP66
Ao PRO 6.8-5050 UNIAOPO6.8-5050
6.8 mm
20736 W/mq
SMD1921
36*36 dots
250*250 mm
5184 dots
500*500*83 mm
8.5 Kg
10000 cd/mq
160°(O)/90°(V)
1200 W/mq
600 W/mq
AC220V
3840 Hz
14 bit
Front/Back Service
IP66
Ao PRO ECO 2.9-5050 UNIAOPOECO2.9-5050
2.97 mm
112896 dots/mq
SMD1515
84*84 dots
250*250 mm
28224 dots
500*500*77 mm
9 Kg
3500 - 4500 cd/mq
160°(O)/100°(V)
700 W/mq
230 W/mq
AC220V
3840 Hz
15 bit
Front/Back Service
IP66
Ao PRO ECO+ 3.9-5050 UNIAOPOECO+3.9-5050
3.91 mm
65536 dot/mq
SMD1921
64*64 dots
250*250 mm
16384 dots
500*500*77 mm
9 Kg
6000-7000 cd/mq
160°(O)*100°(V)
650 W/mq
230 W/mq
AC220V
3840 Hz
15 bit
Front/Back Service
IP66
Ao PRO ECO 3.9-5050 UNIAOPOECO3.9-5050
3.91 mm
65536 dots/mq
SMD1921
64*64 dots
250*250 mm
16384 dots
500*500*77 mm
9 Kg
4500-5000 cd/mq
160°(O)/100°(V)
650-700 W/mq
180-235 W/mq
AC220V
3840 Hz
14 bit
Front/Back Service
IP66
Ao PRO ECO+ 3.9-50100 UNIAOPOECO+3.9-50100
3.91 mm
65536 dots/mq
SMD1921
128*64 dots
500*250 mm
32768 dot
500*1000*77 mm
16.5 Kg
6500-7000 cd/mq
160°(O)/100°(V)
650 W/mq
230 W/mq
AC220V
3840 Hz
15 bit
Front/Back Service
IP66
Ao PRO ECO 3.9-50100 UNIAOPOECO3.9-50100
3.91 mm
65536 dots/mq
SMD1921
128*64 dots
500*250 mm
32768 dots
500*1000*77 mm
16.5 Kg
4800-5000 cd/mq
160°(O)/100°(V)
650-700 W/mq
180-235 W/mq
AC220V
3840 Hz
14 bit
Front/Back Service
IP66
Ao PRO ECO+ 3.9-5075 UNIAOPOECO+3.9-5075
3.91 mm
65536 dots/mq
SMD1921
128*64 dots
500*250 mm
24576 dot
500*750*77 mm
13.5 Kg
6500-7000 cd/mq
160°(O)/100°(V)
650 W/mq
230 W/mq
AC220V
3840 Hz
15 bit
Front/Back Service
IP66
Ao PRO ECO 3.9-5075 UNIAOPOECO3.9-5075
3.91 mm
65536 dots/mq
SMD1921
128*64 dots
500*250 mm
24576 dot
500*750*77 mm
13.5 Kg
4800-5000 cd/mq
160°(O)/100°(V)
650-700 W/mq
180-235 W/mq
AC220V
3840 Hz
14 bit
Front/Back Service
IP66
Ao PRO ECO+ 3.9-10050 UNIAOPOECO+3.9-10050
3.91 mm
65536 dot/mq
SMD1935
128*64 dots
500*250 mm
32768 dots

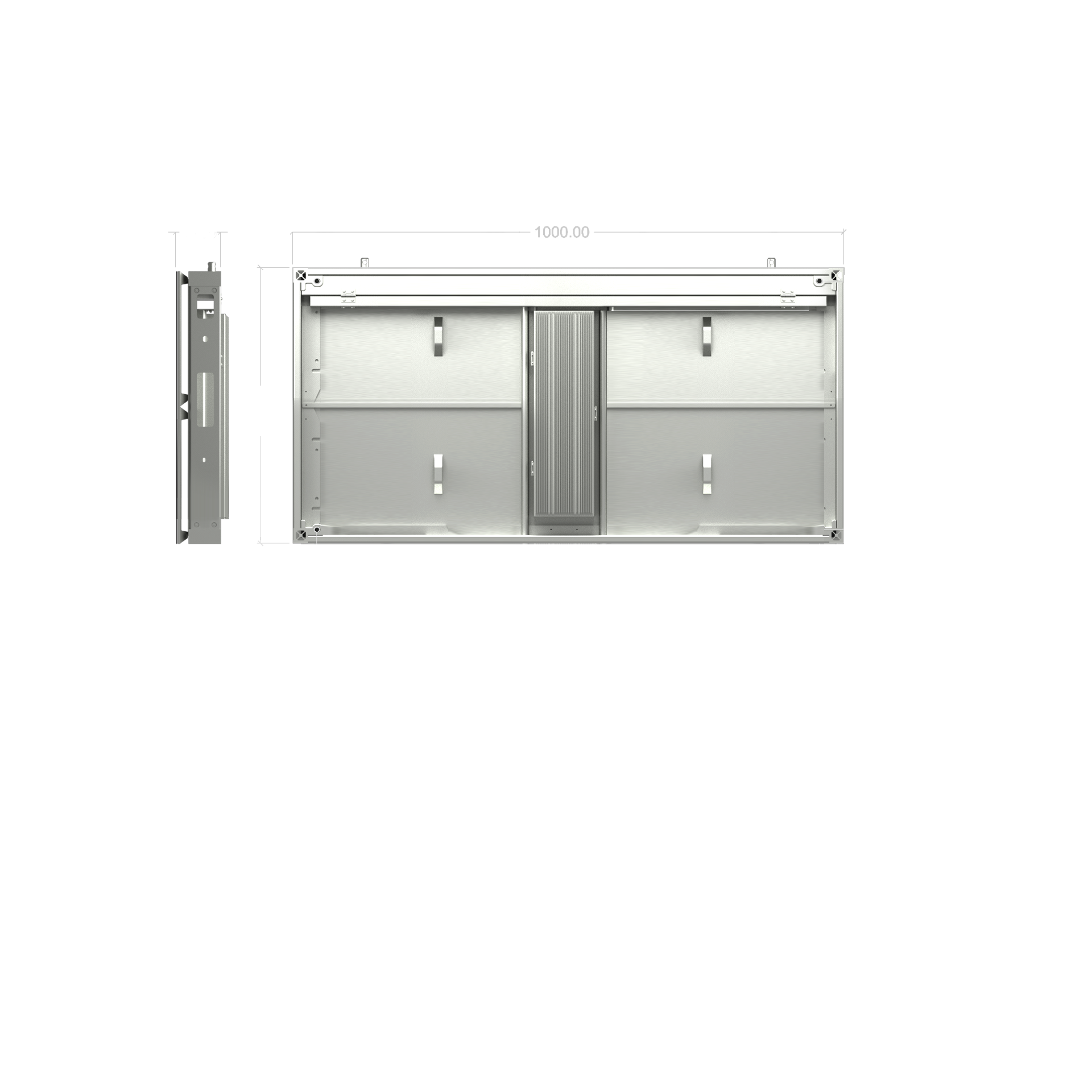

1000*500*81.5 mm
13.5 Kg
3000-4000-5000-6000 cd/mq
160°(O)/90°(V)
325-430-540-650 W/mq
98-129-162-195 W/mq
AC100-240V
3840 - 7680 Hz
15 bit
Front/Back Service
IP66
Ao PRO ECO+ 3.9-10075 UNIAOPOECO+3.9-10075
3.91 mm
65536 dot/mq
SMD1935
128*64 dots
500*250 mm
49152 dots

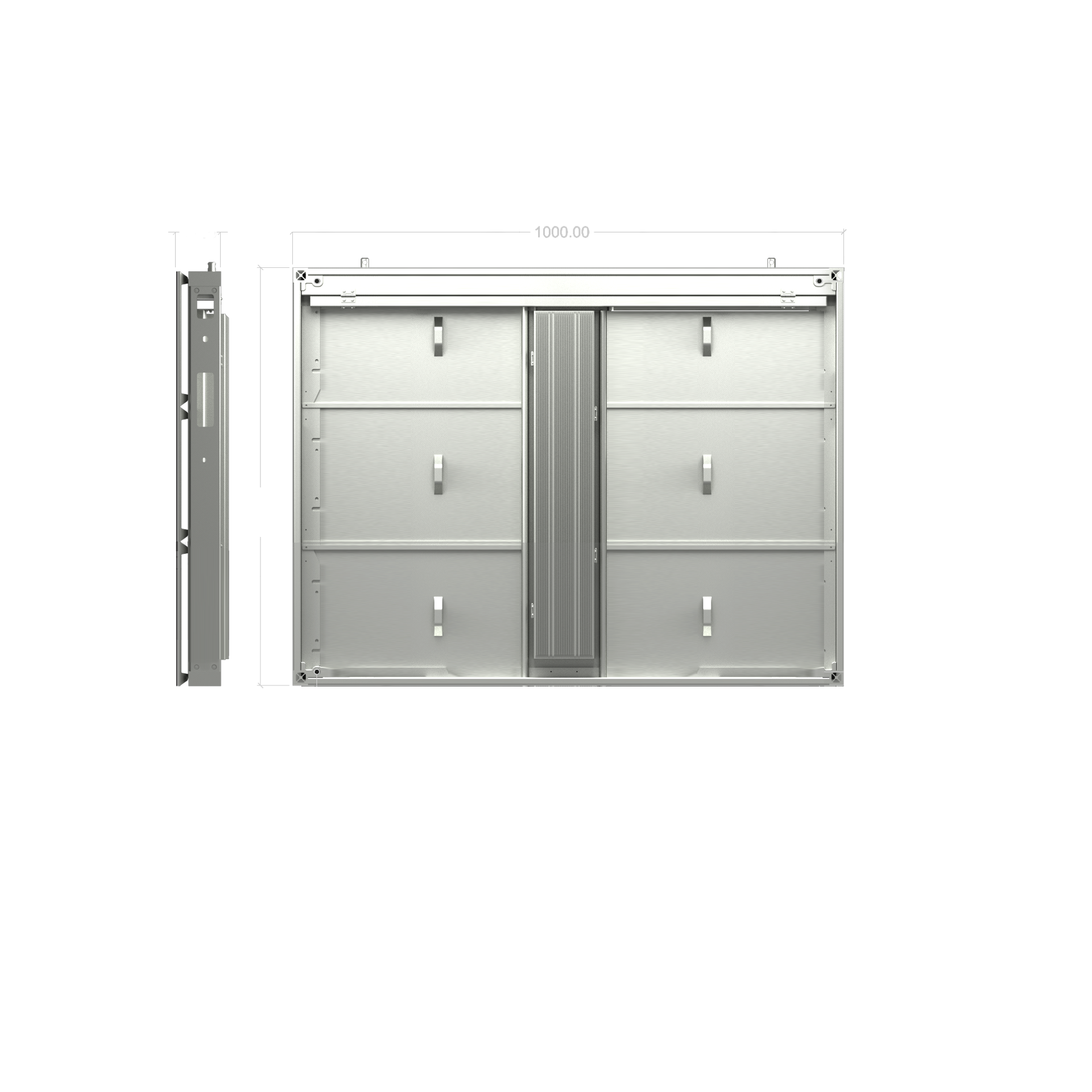

1000*750*81.5 mm
20.25 Kg
3000-4000-5000-6000 cd/mq
160°(O)/90°(V)
325-430-540-650 W/mq
98-129-162-195 W/mq
AC100-240V
3840 - 7680 Hz
14-16 bit
Front/Back Service
IP66
Ao PRO ECO+ 3.9-100100 UNIAOPOECO+3.9-100100
3.91 mm
65536 dot/mq
SMD1935
128*64 dots
500*250 mm
65536 dots

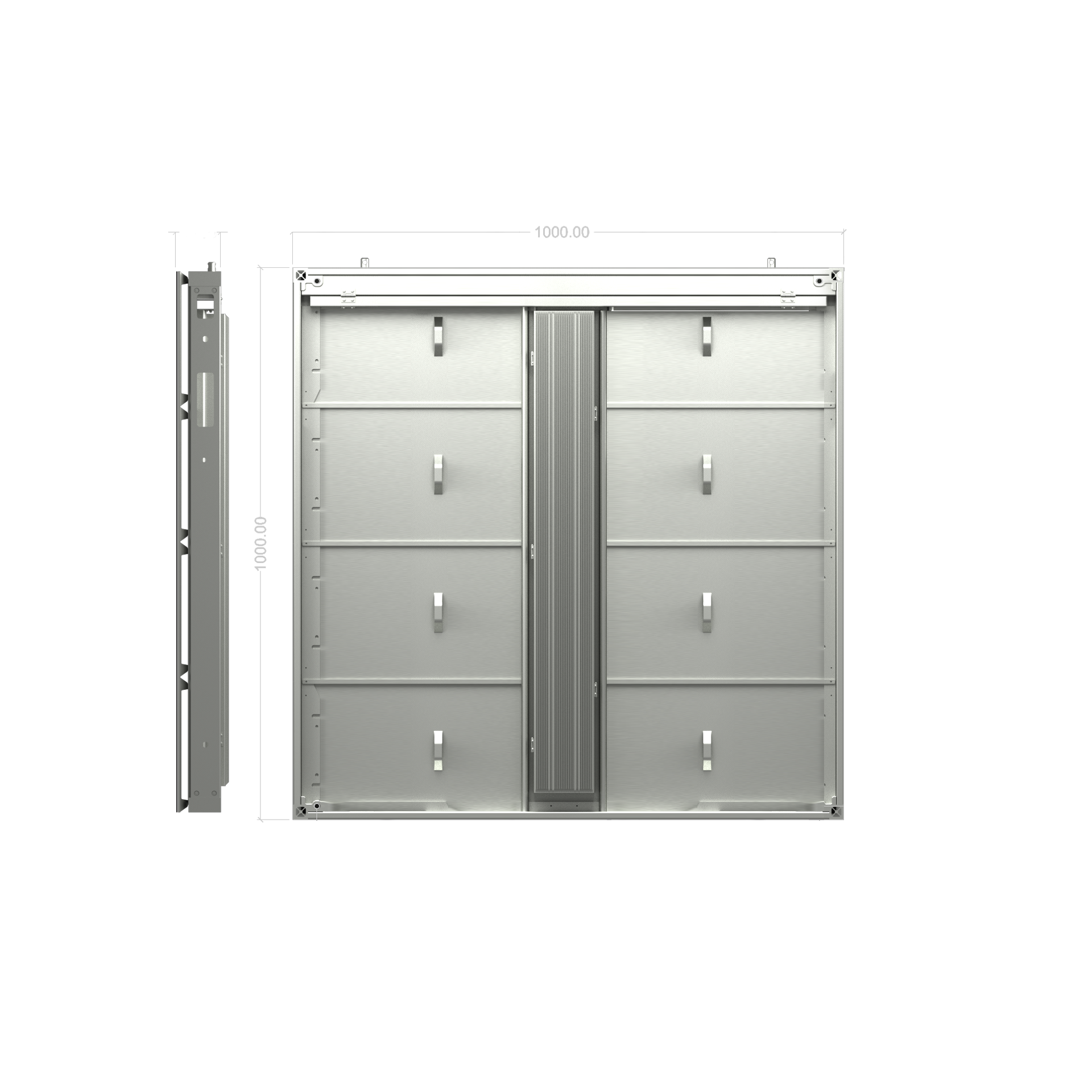

1000*1000*81.5 mm
27 Kg
3000-4000-5000-6000 cd/mq
160°(O)/90°(V)
325-430-540-650 W/mq
98-129-162-195 W/mq
AC100-240V
3840-7680 Hz
14-16 bit
Front/Back Service
IP66
Ao PRO ECO+ 3.9-15050 UNIAOPOECO+3.9-15050
3.91 mm
65536 dot/mq
SMD1935
128*64 dots
500*250 mm
49152 dots

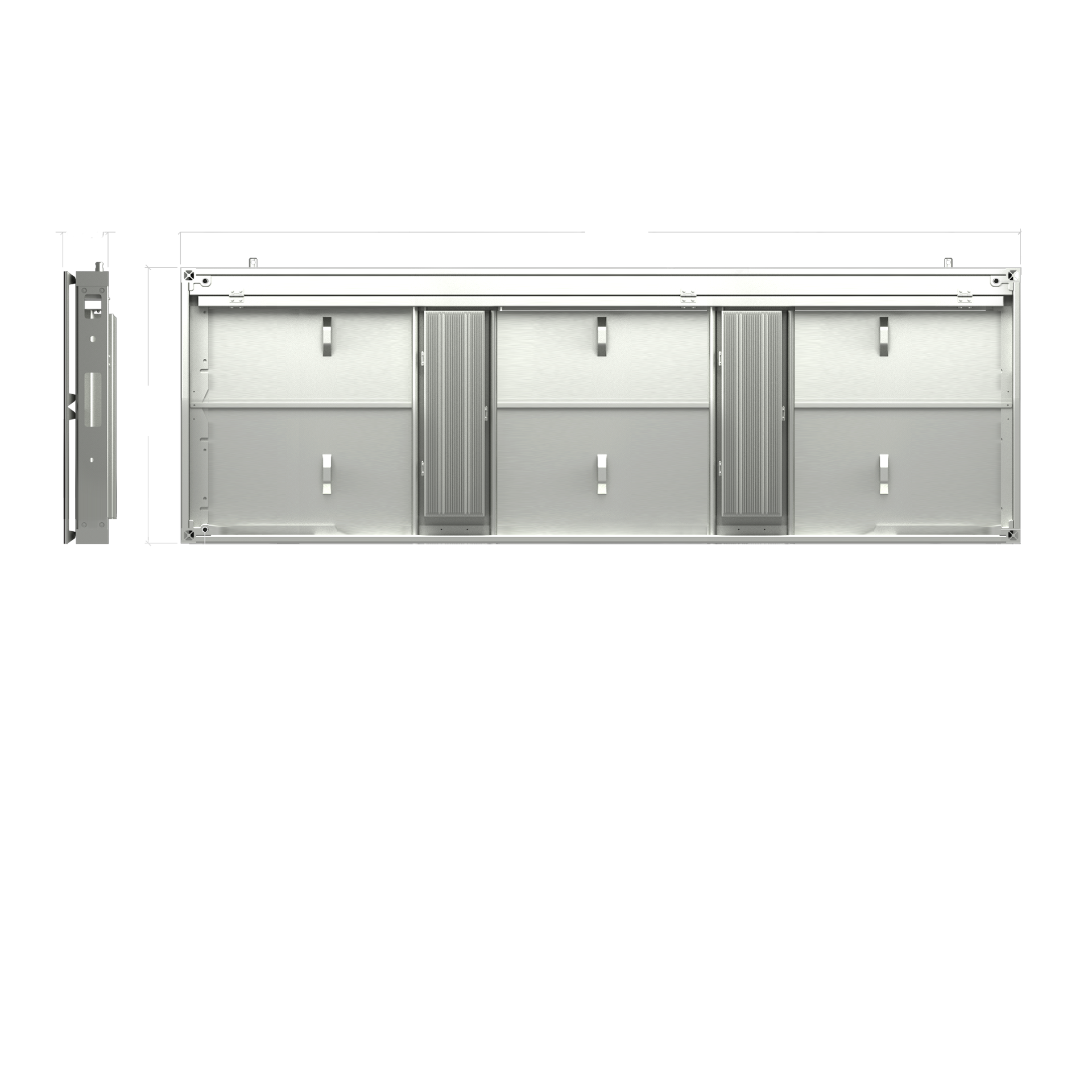

1500*500*81.5 mm
33.75 Kg
3000-4000-5000-6000 cd/mq
160°(O)/90°(V)
325-430-540-650 W/mq
98-129-162-195 W/mq
AC100-240V
3840-7680 Hz
14-16 bit
Front/Back Service
IP66
Ao PRO ECO+ 3.9-15075 UNIAOPOECO+3.9-15075
3.91 mm
65536 dot/mq
SMD1935
128*64 dots
500*250 mm
73728 dots

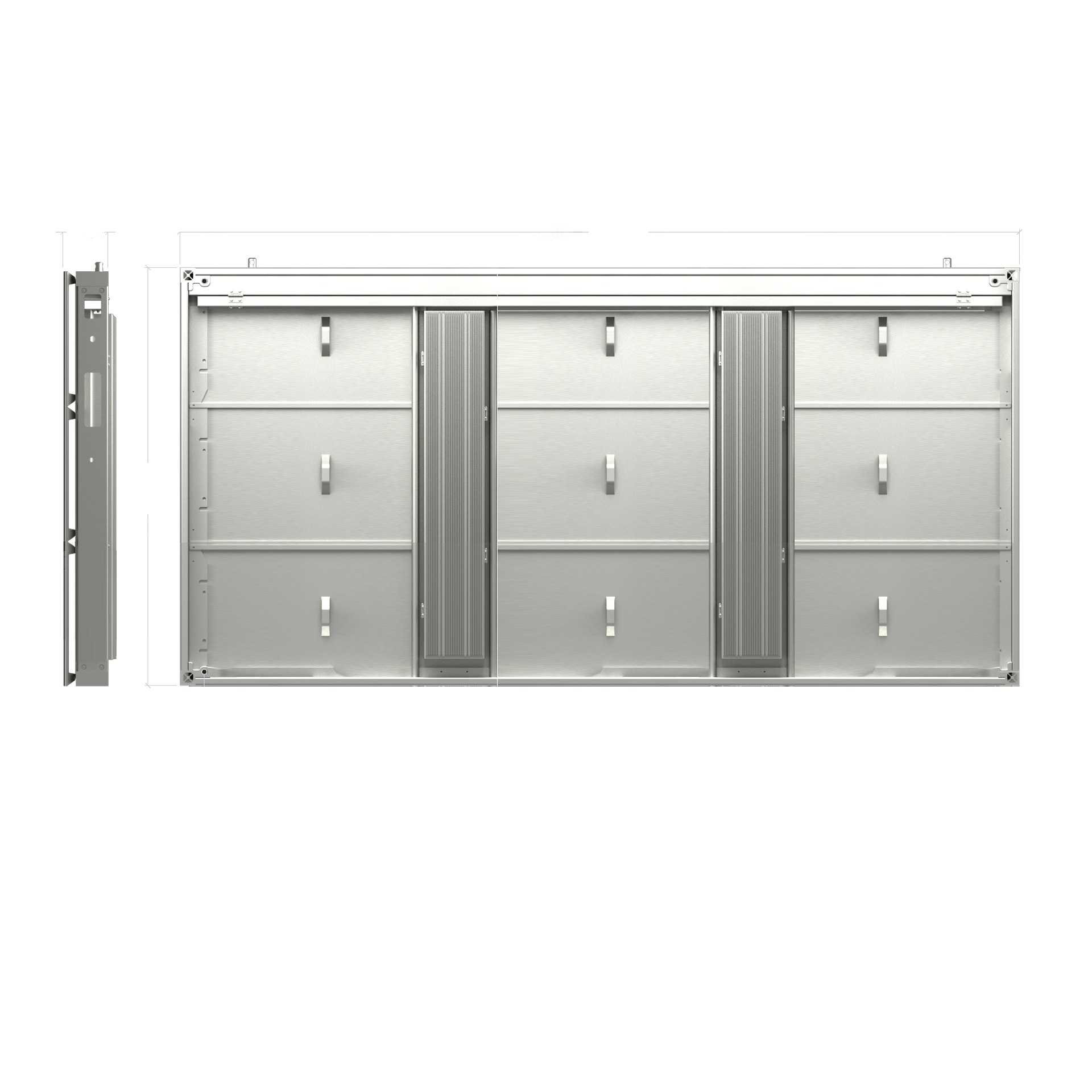

1500*750*81.5 mm
16.5 Kg
3000-4000-5000-6000 cd/mq
160°(O)/90°(V)
325-430-540-650 W/mq
98-129-162-195 W/mq
AC100-240V
3840-7680 Hz
14-16 bit
Front/Back Service
IP66
Ao PRO ECO+ 3.9-150100 UNIAOPOECO+3.9-150100
3.91 mm
65536 dot/mq
SMD1935
128*64 dots
500*250 mm
98304 dots

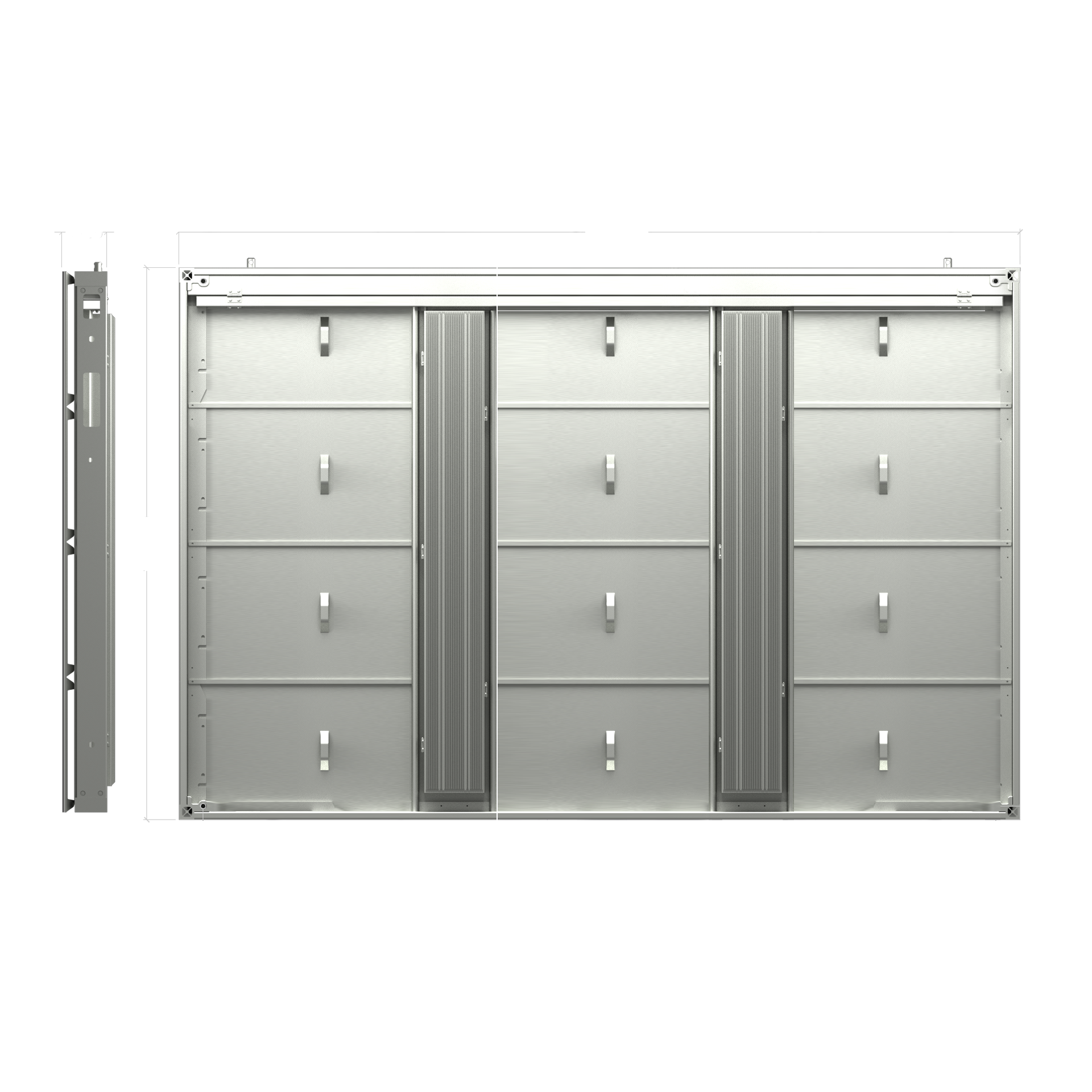

1500*1000*81.5 mm
40.5 Kg
3000-4000-5000-6000 cd/mq
160°(O)/90°(V)
325-430-540-650 W/mq
98-129-162-195 W/mq
AC100-240V
3840-7680 Hz
14-16 bit
Front/Back Service
IP66
