LAMINA S+ series

Indoor

Indoor product

Indoor Led Display, alta luminosità, design sottile, disponibile in vari formati.

Applicazione: Advetising, Event, Exhibition, Installation.

Vai al Configuratore

Caratteristiche.

  • High Brightness
  • Ultra Light

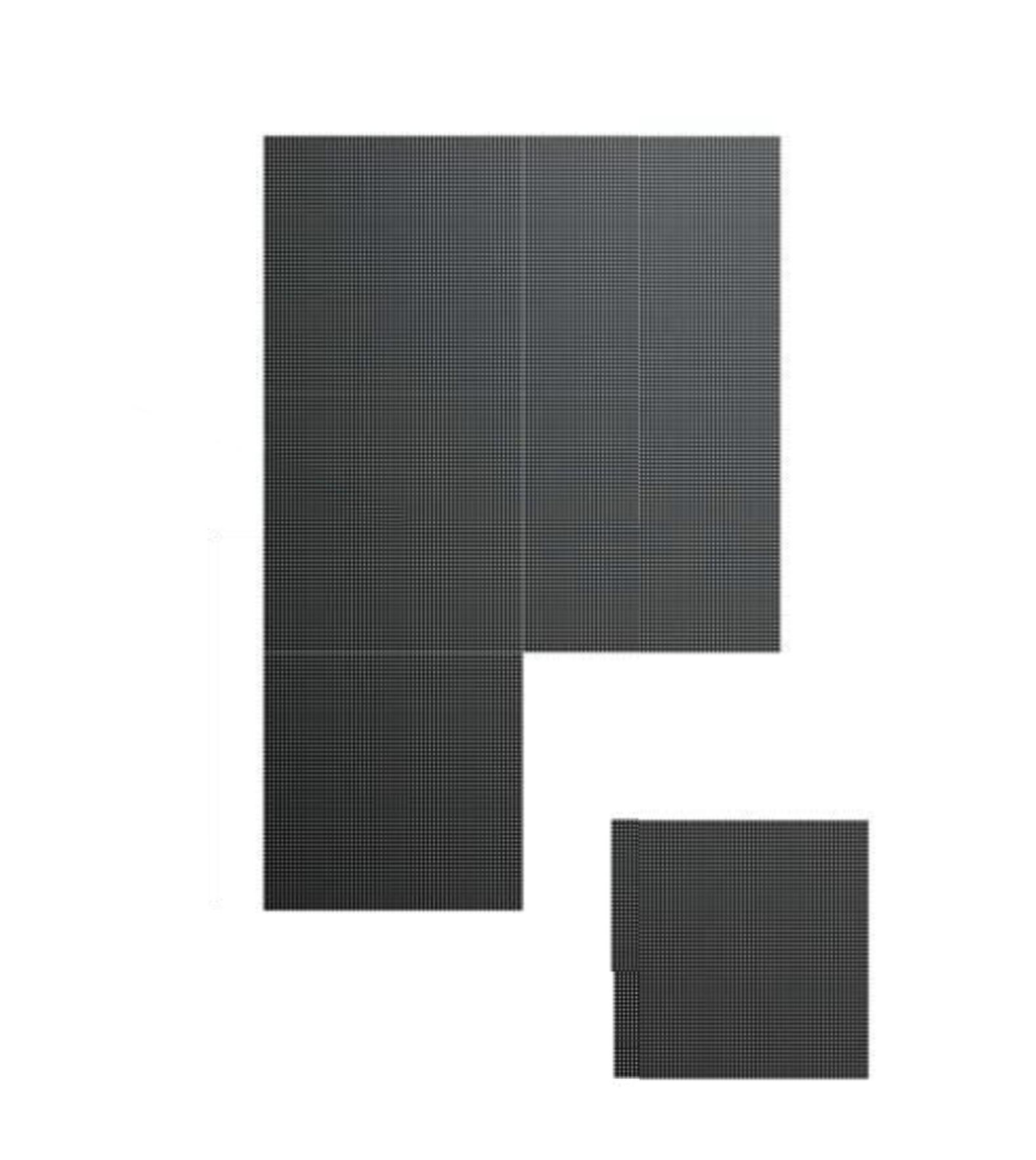

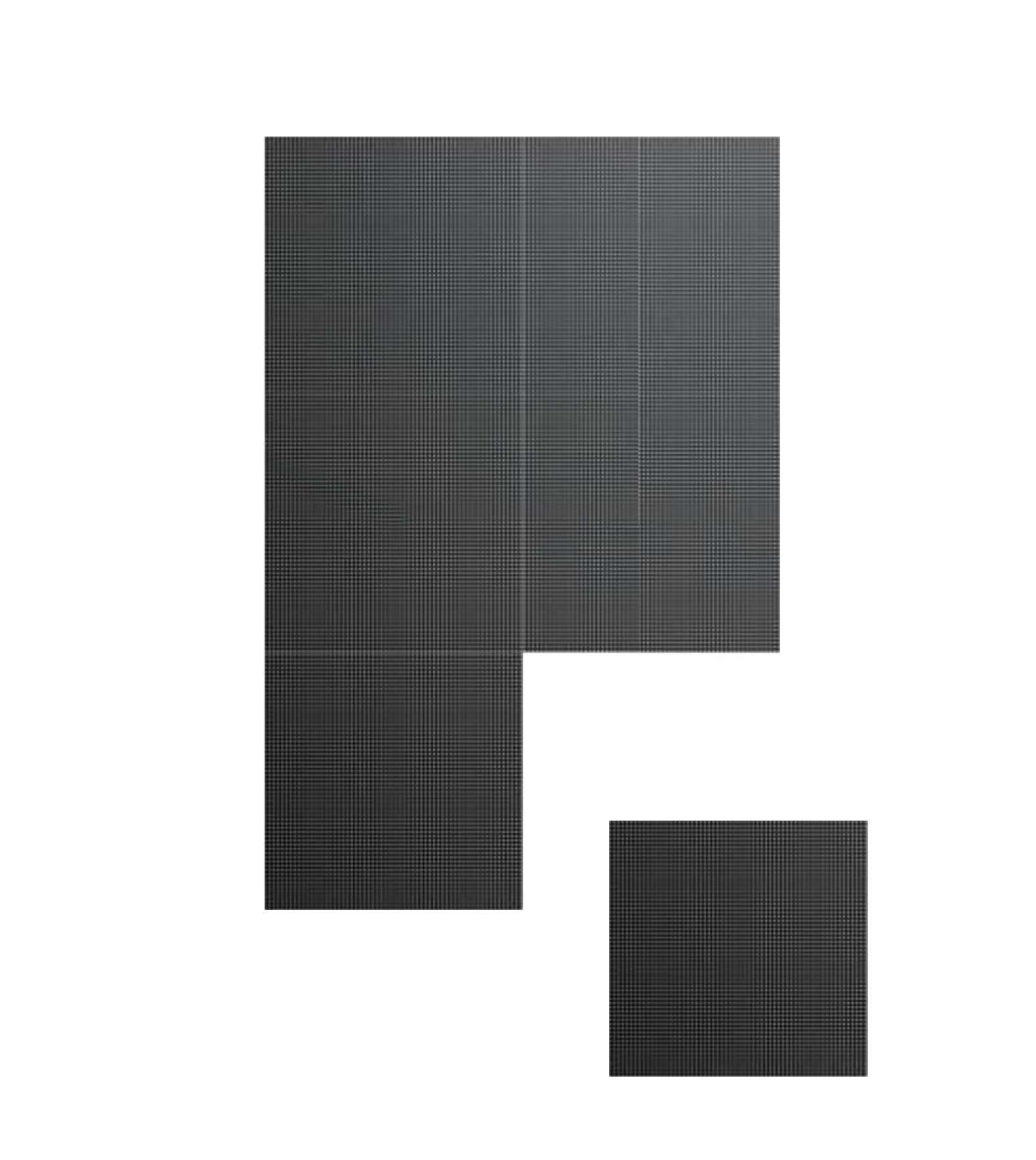

  • Mixed Splicing

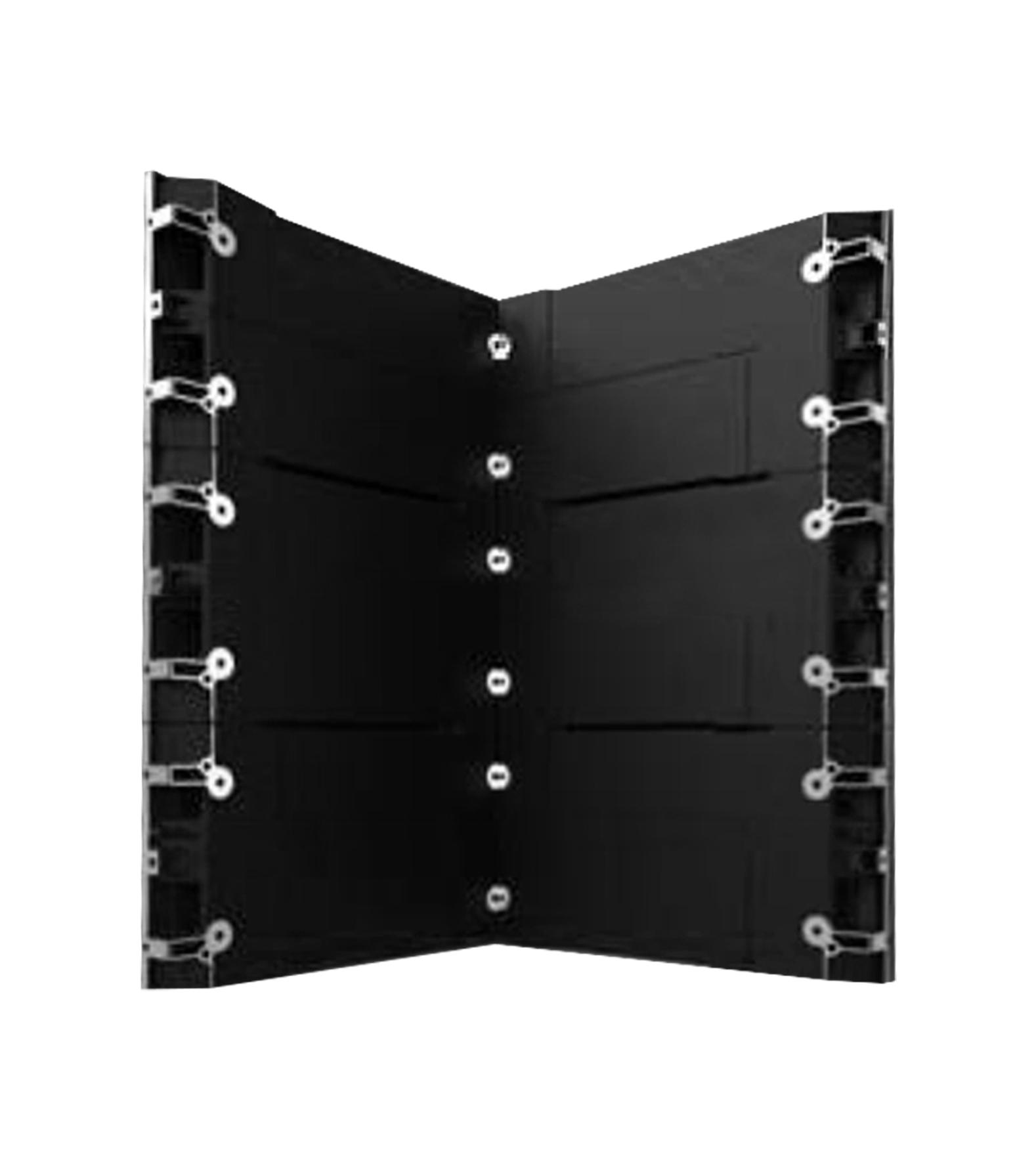

  • Right Angle Splicing

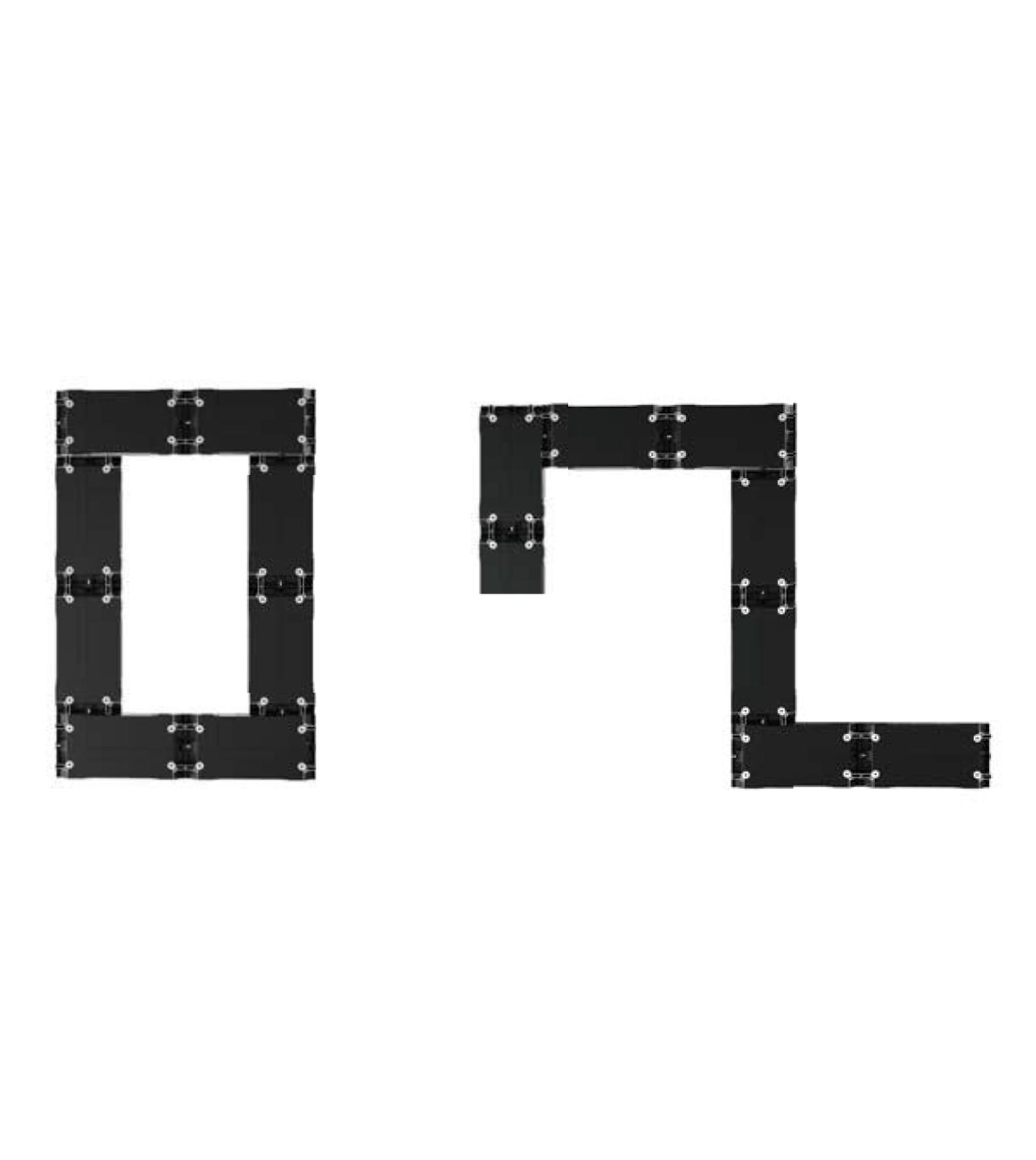

  • Creative Splicing
  • Ultra Thin
  • Fast & Easy Installation
  • Front Installation

Specifiche.

LAMINA S+1.5-10025 UNILMNS+1.5-10025

LAMINA S+1.9-10025 UNILMNS+1.9-10025

LAMINA S+2.6-10025 UNILMNS+2.6-10025

LAMINA S+3.9-10025 UNILMNS+3.9-10025

LAMINA S+3.9-10050 UNILMNS+3.9-10050

LAMINA S+2.6-10050 UNILMNS+2.6-10050

LAMINA S+1.9-10050 UNILMNS+1.9-10050

LAMINA S+1.5-10050 UNILMNS+1.5-10050

LAMINA S+3.9-5050 UNILMNS+3.9-5050

LAMINA S+2.6-5050 UNILMNS+2.6-5050

LAMINA S+1.9-5050 UNILMNS+1.9-5050

LAMINA S+1.5-5050 UNILMNS+1.5-5050

LAMINA S+3.9-5075 UNILMNS+3.9-5075

LAMINA S+2.6-5075 UNILMNS+2.6-5075

LAMINA S+1.9-5075 UNILMNS+1.9-5075

LAMINA S+1.5-5075 UNILMNS+1.5-5075

LAMINA S+1.5-5025 UNILMNS+1.5-5025

LAMINA S+1.9-5025 UNILMNS+1.9-5025

LAMINA S+2.6-5025 UNILMNS+2.6-5025

LAMINA S+3.9-5025 UNILMNS+3.9-5025

Titolo

Pixel Pitch

Pixel Density

Led Type

Module Resolution

Module Size

Cabinet Resolution

Cabinet Size

Cabinet Weight

Brightness

View Angle

Max Power Consumption

Ave. Power Consumption

Input Voltage

Radius of bending

Refresh Rate

Gray Scale

Installation Method

Surface Protection

IP Level

LAMINA S+1.5-10025 UNILMNS+1.5-10025

1.56 mm

430336 dot/mq

SMD1010

164*164 dots

250*250 mm

107584 dits

1000*250*47 mm

6.5 Kg

800 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

2880 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+1.9-10025 UNILMNS+1.9-10025

1.95 mm

262144 dot/mq

SMD1010

128*128 dots

250*250 mm

65536 dots

1000*250*47 mm

6.5 Kg

600-800 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3840 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+2.6-10025 UNILMNS+2.6-10025

2.604 mm

147456 dot/mq

SMD1515/SMD2020

96*96 dots

250*250 mm

36864 dots

1000*250*47 mm

6.5 Kg

800-1200 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3810 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+3.9-10025 UNILMNS+3.9-10025

3.91 mm

65536 dot/mq

SMD2020

64*64 dots

250*250 mm

16384 dots

1000*250*47 mm

6.5 Kg

800-1200 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3810 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+3.9-10050 UNILMNS+3.9-10050

3.91 mm

65536 dot/mq

SMD2020

64*64 dots

250*250 mm

32768 dots

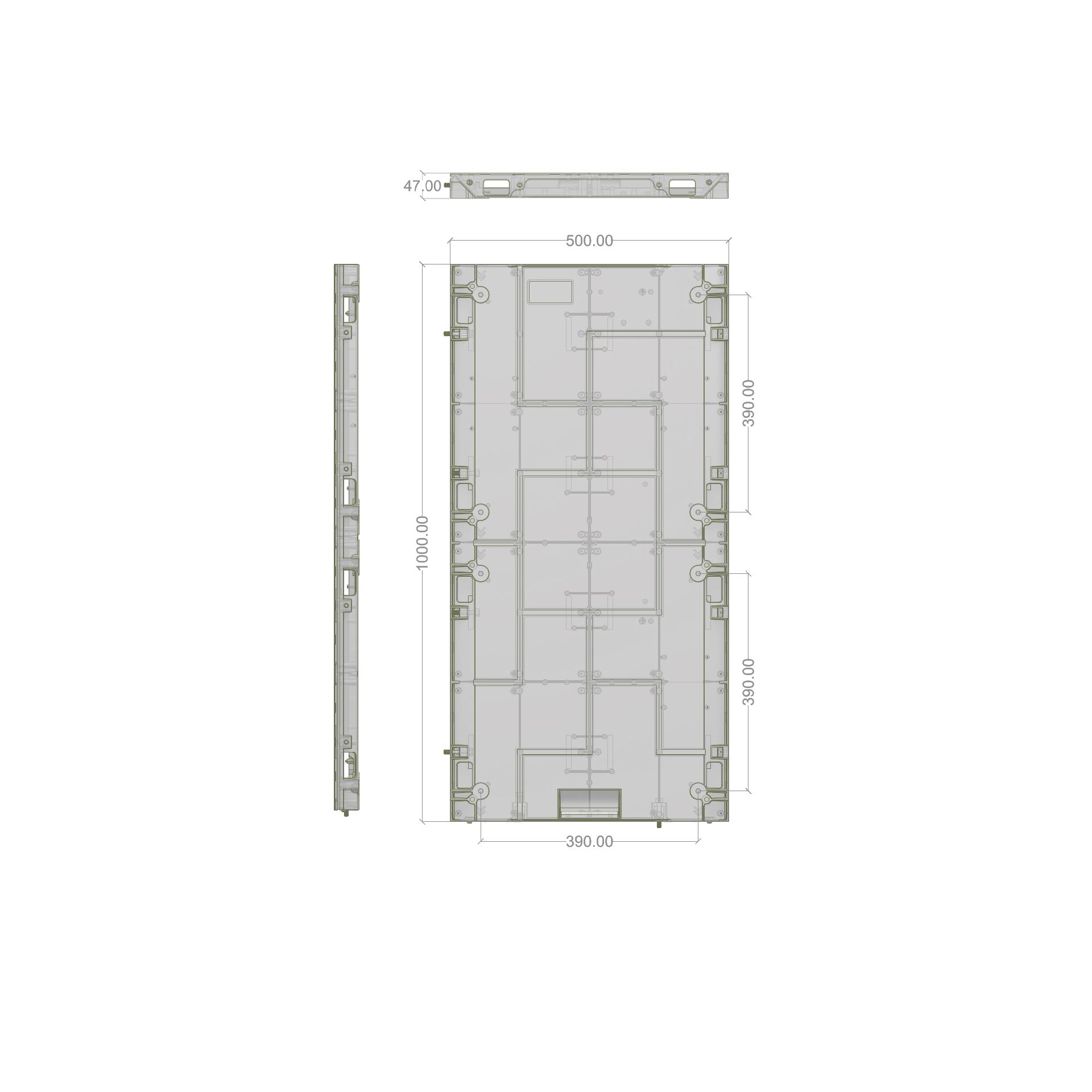

1000*500*47 mm

11.2 Kg

800-1200 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3810 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+2.6-10050 UNILMNS+2.6-10050

2.604 mm

147456 dot/mq

SMD1515/SMD2020

96*96 dots

250*250 mm

73728 dots

1000*500*47 mm

11.2 Kg

800-1200 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3810 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+1.9-10050 UNILMNS+1.9-10050

1.95 mm

262144 dot/mq

SMD1010

128*128 dots

250*250 mm

131072 dots

1000*500*47 mm

11.2 Kg

600-800 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3840 Hz

14 bit

Front Service

EOCT

IP20

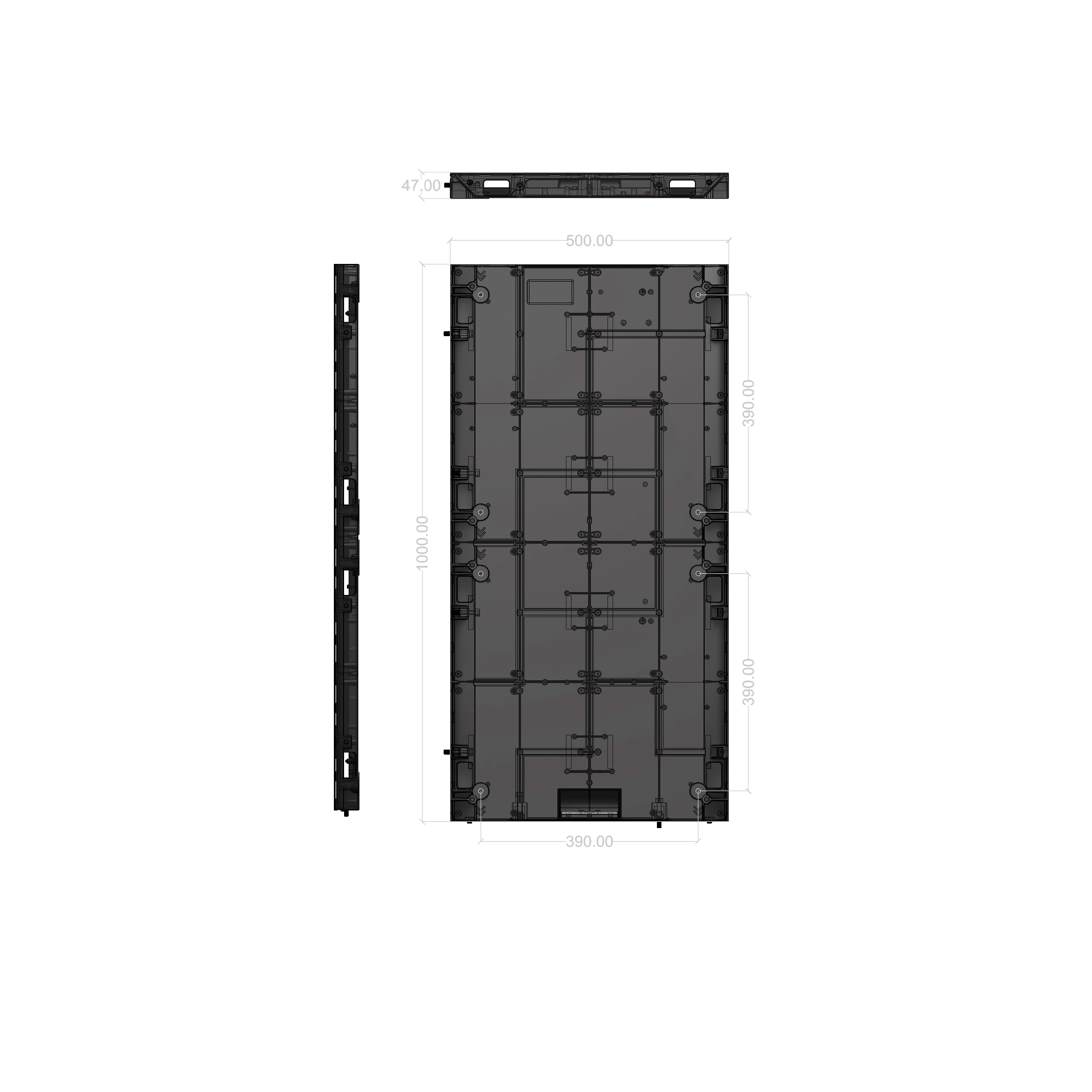

LAMINA S+1.5-10050 UNILMNS+1.5-10050

1.56 mm

430336 dot/mq

SMD1010

164*164 dots

250*250 mm

215168 dots

1000*500*47 mm

11.2 Kg

800 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

2880 Hz

14 bit

Front Service

EOCT

IP20

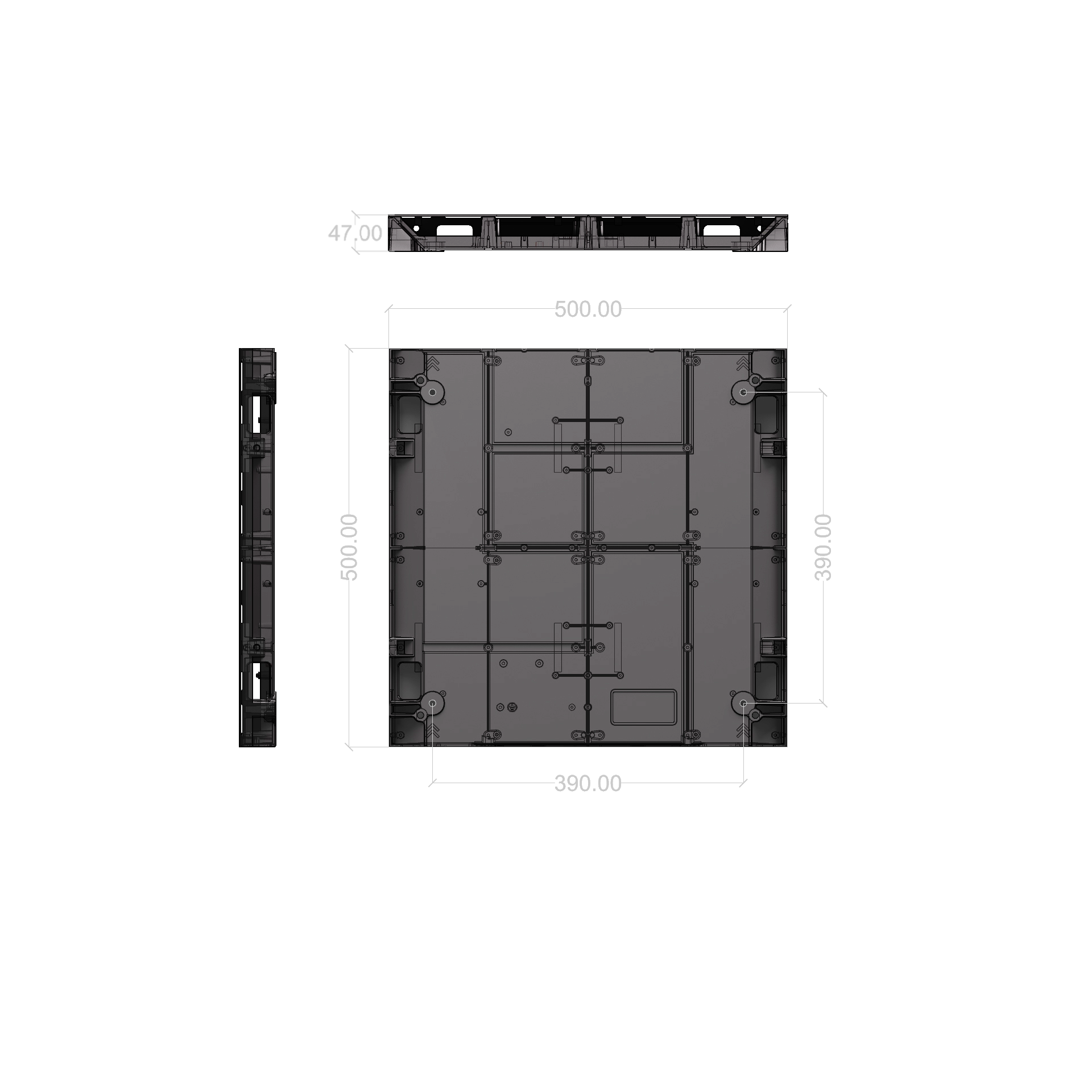

LAMINA S+3.9-5050 UNILMNS+3.9-5050

3.91 mm

65536 dot/mq

SMD2020

64*64 dots

250*250 mm

16384 dots

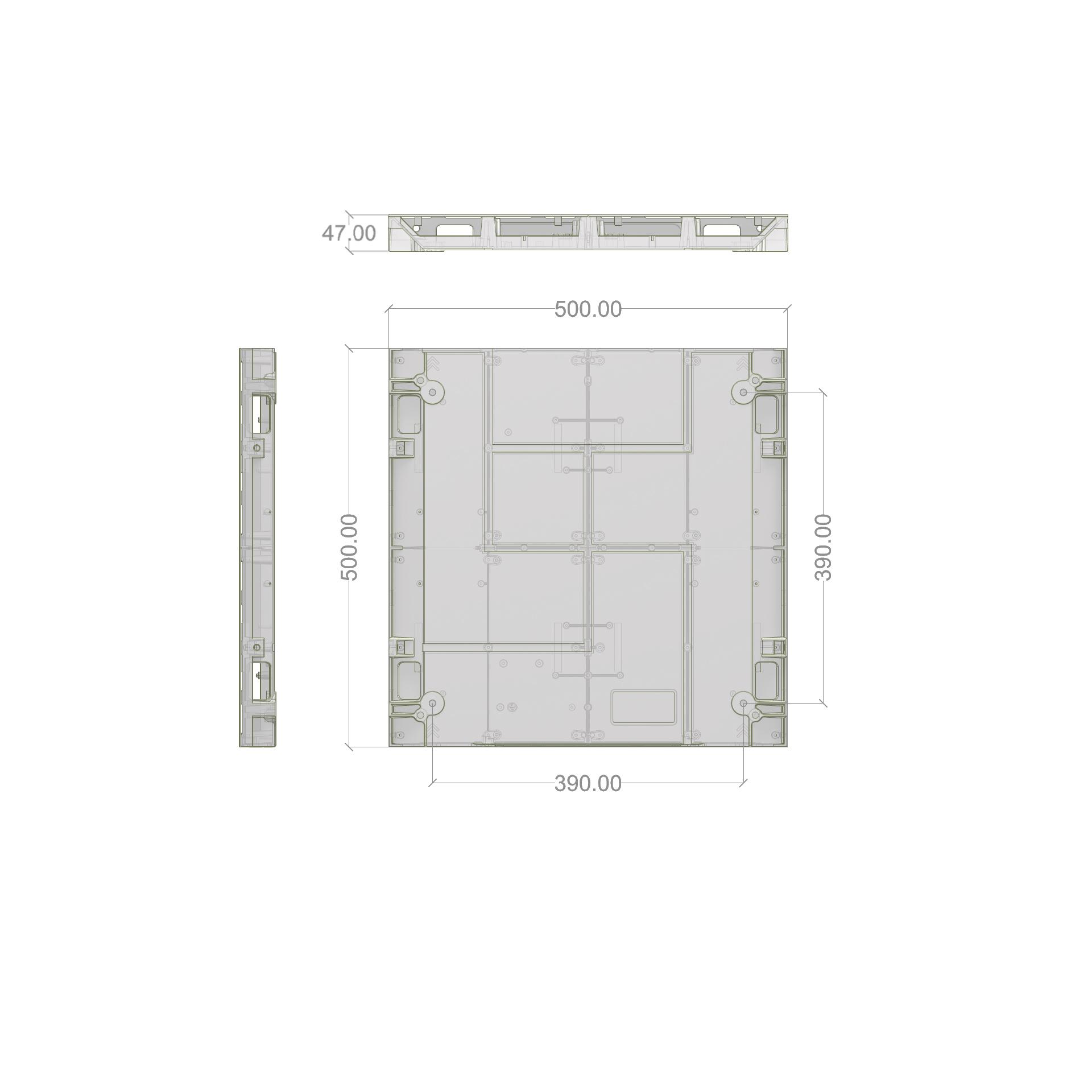

500*500*47 mm

6 Kg

800-1200 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3810 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+2.6-5050 UNILMNS+2.6-5050

2.604 mm

147456 dot/mq

SMD1515/SMD2020

96*96 dots

250*250 mm

36864 dots

500*500*47 mm

6 Kg

800-1200 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3810 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+1.9-5050 UNILMNS+1.9-5050

1.95 mm

262144 dot/mq

SMD1010

128*128 dots

250*250 mm

65536 dots

500*500*47 mm

6 Kg

600-800 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3840 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+1.5-5050 UNILMNS+1.5-5050

1.56 mm

430336 dot/mq

SMD1010

164*164 dots

250*250 mm

107584 dots

500*500*47 mm

6 Kg

800 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

2880 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+3.9-5075 UNILMNS+3.9-5075

3.91 mm

65536 dot/mq

SMD2020

64*64 dots

250*250 mm

24576 dots

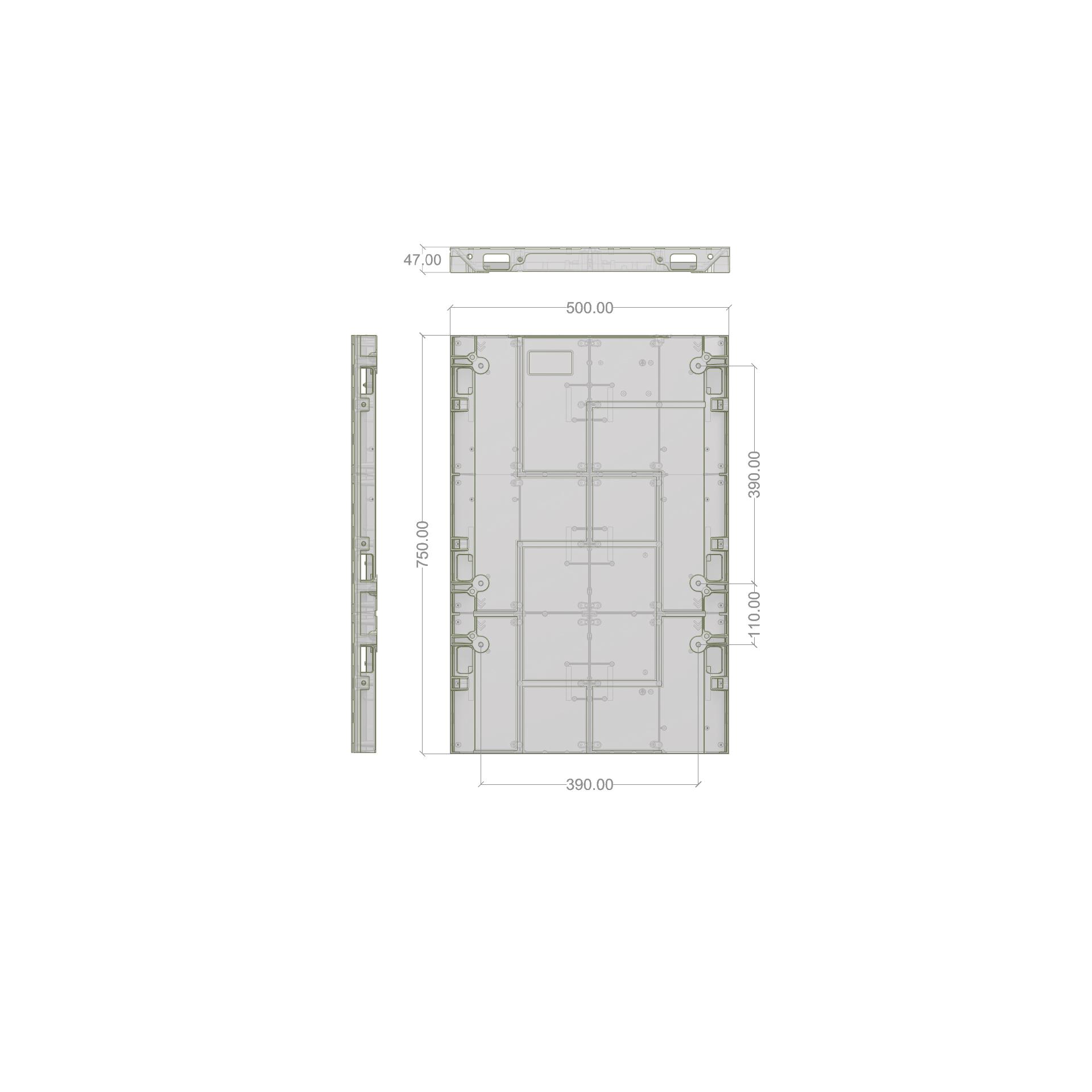

500*750*47 mm

8.5 Kg

800-1200 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3810 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+2.6-5075 UNILMNS+2.6-5075

2.604 mm

147456 dot/mq

SMD1515/SMD2020

96*96 dots

250*250 mm

55296 dots

500*750*47 mm

8.5 Kg

800-1200 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3810 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+1.9-5075 UNILMNS+1.9-5075

1.95 mm

262144 dot/mq

SMD1010

128*128 dots

250*250 mm

98304 dots

500*750*47 mm

8.5 Kg

600-800 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3840 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+1.5-5075 UNILMNS+1.5-5075

1.56 mm

430336 dot/mq

SMD1010

164*164 dots

250*250 mm

161376 dots

500*750*47 mm

8.5 Kg

800 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

2880 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+1.5-5025 UNILMNS+1.5-5025

1.56 mm

430336 dot/mq

SMD1010

164*164 dots

250*250 mm

53792 dots

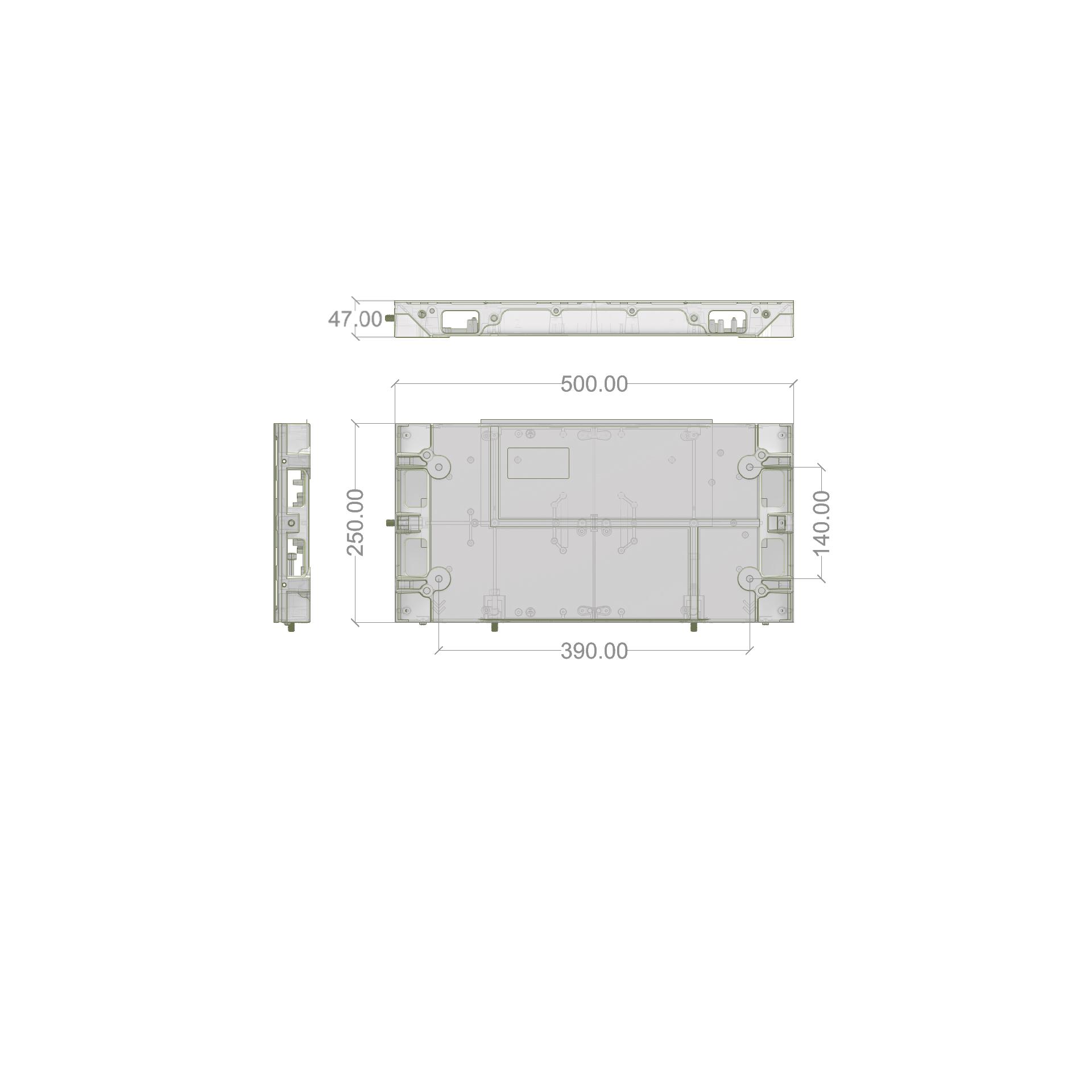

500*250*47 mm

3.5 Kg

800 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

2880 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+1.9-5025 UNILMNS+1.9-5025

1.95 mm

262144 dot/mq

SMD1010

128*128 dots

250*250 mm

32768 dots

500*250*47 mm

3.5 Kg

600-800 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3840 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+2.6-5025 UNILMNS+2.6-5025

2.604 mm

147456 dot/mq

SMD1515/SMD2020

96*96 dots

250*250 mm

18432 dots

500*250*47 mm

3.5 Kg

800-1200 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3810 Hz

14 bit

Front Service

EOCT

IP20

LAMINA S+3.9-5025 UNILMNS+3.9-5025

3.91 mm

65536 dot/mq

SMD2020

64*64 dots

250*250 mm

8192 dots

500*250*47 mm

3.5 Kg

800-1200 cd/mq

140°(H)/140°(V)

600 W/mq

200 W/mq

AC100-240V

+90°

3810 Hz

14 bit

Front Service

EOCT

IP20
