Fm UHD + series

Indoor

Indoor product

Indoor Led Display, Flip Chip COB, alte prestazioni visive, alta luminosità, design sottile e leggero.

Applicazione: Advetising, Event, Exhibition, Installation.

Vai al Configuratore

Caratteristiche.

  • Ultra Light
  • Ultra Thin
  • High Refresh Rate
  • Fast & Easy Installation
  • Front Installation
  • 16 : 9 Ratios
  • Flip Chip Cob Technology
  • Surface Protection EOCT

Specifiche.

Fm UHD+ 0.7 UNIFMUHD+0.7-6034-F1

Fm UHD+ 0.8 UNIFMUHD+0.8-6034-F1

Fm UHD+ 0.9 UNIFMUHD+0.9-6034-F1

Fm UHD+ 1.1 UNIFMUHD+1.1-6034-F1

Fm UHD+ 1.2 UNIFMUHD+1.2-6034-F1

Fm UHD+ 1.5 UNIFMUHD+1.5-6034-F1

Fm UHD+ 1.9 UNIFMUHD+1.9-6034-F1

Titolo

Pixel Pitch

Pixel Density

Led Type

Module Resolution

Module Size

Cabinet Resolution

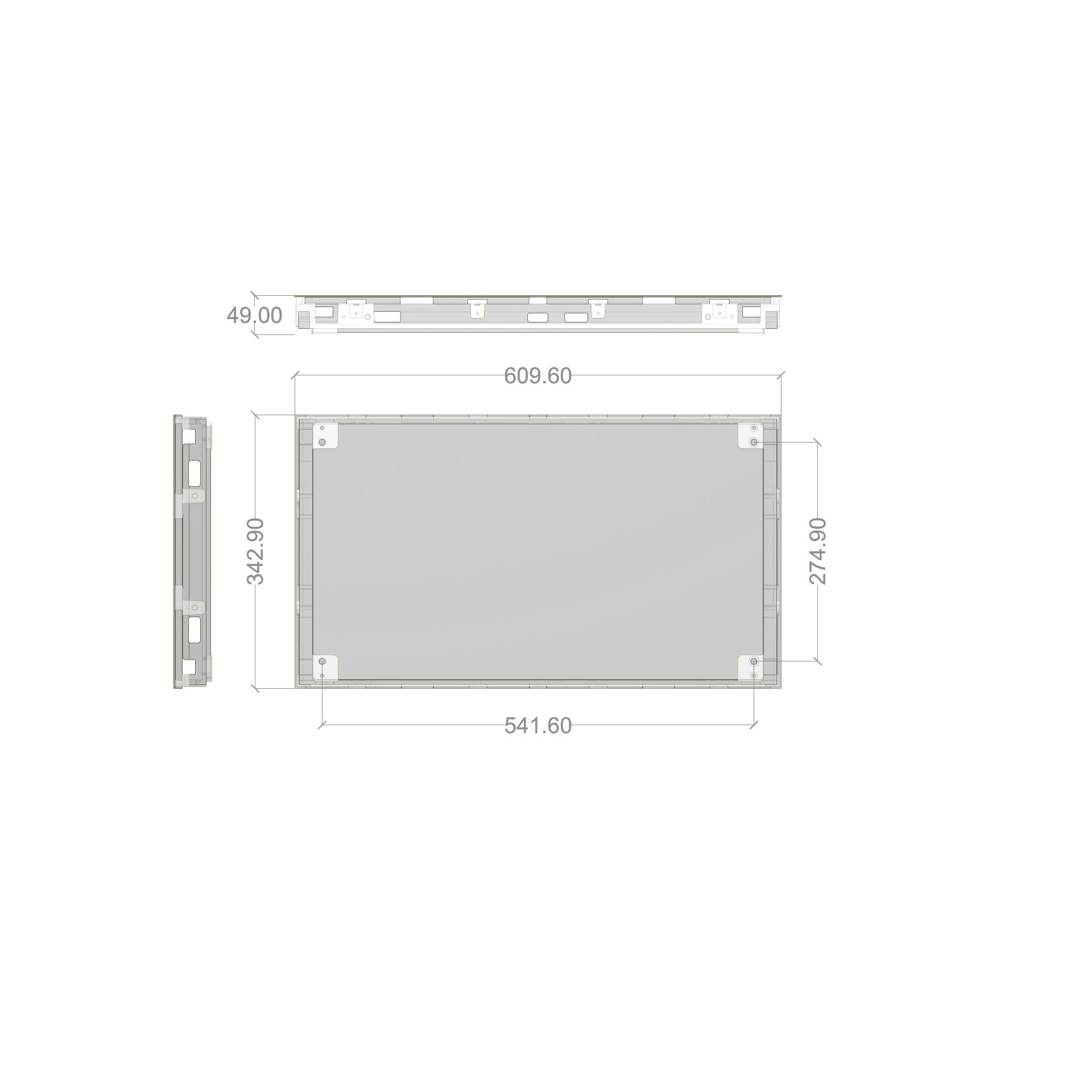

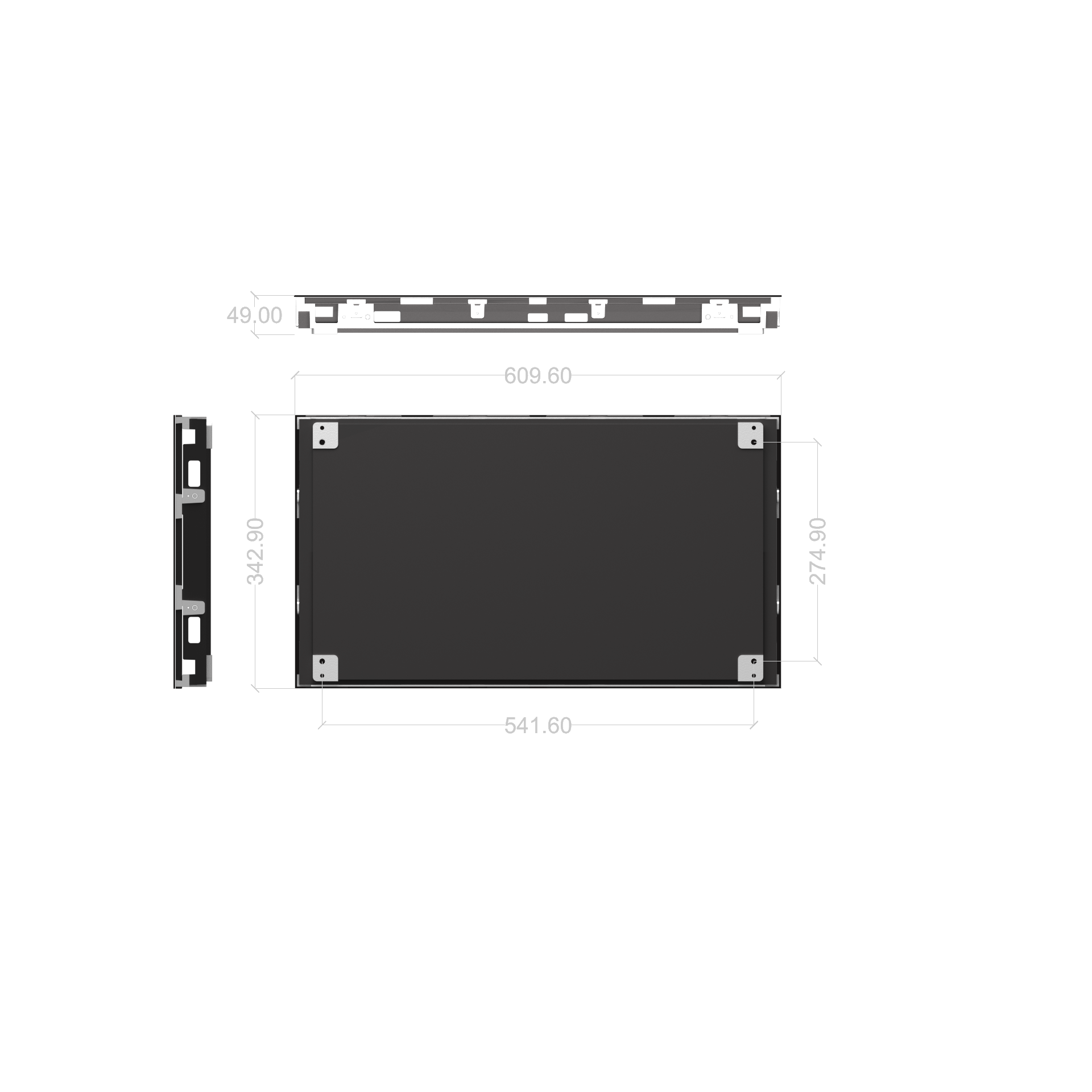

Cabinet Size

Cabinet Weight

Brightness

View Angle

Max Power Consumption

Ave. Power Consumption

Input Voltage

Refresh Rate

Installation Method

Surface Protection

IP Level

Fm UHD+ 0.7 UNIFMUHD+0.7-6034-F1

0.79 mm

1587203 dot/mq

Flip Chip COB

192*144 dots

152.4*114.3 mm

331776 dots

609.6*342.9*49 mm

6.8 Kg

500 cd/mq

170°(H)/170°(V)

500 W/mq

166 W/mq

AC100-240V

3840 Hz

Front Service

EOCT

IP54

Fm UHD+ 0.8 UNIFMUHD+0.8-6034-F1

0.88 mm

1263884 dot/mq

Flip Chip COB

172*128 dots

152.4*114.3 mm

264192 dots

609.6*342.9*49 mm

6.8 Kg

500 cd/mq

170°(H)/170°(V)

500 W/mq

166 W/mq

AC100-240V

3840 Hz

Front Service

EOCT

IP54

Fm UHD+ 0.9 UNIFMUHD+0.9-6034-F1

0.95 mm

1102224 dot/mq

Flip Chip COB

160*120 dots

152.4*114.3 mm

230400 dots

609.6*342.9*49 mm

6.8 Kg

600 cd/mq

170°(H)/170°(V)

500 W/mq

166 W/mq

AC100-240V

3840 Hz

Front Service

EOCT

IP54

Fm UHD+ 1.1 UNIFMUHD+1.1-6034-F1

1.19 mm

705453 dot/mq

Flip Chip COB

128*96 dots

152.4*114.3 mm

147456 dots

609.6*342.9*49 mm

6.8 Kg

800 cd/mq

170°(H)/170°(V)

500 W/mq

166 W/mq

AC100-240V

3840 Hz

Front Service

EOCT

IP54

Fm UHD+ 1.2 UNIFMUHD+1.2-6034-F1

1.27 mm

620001 dot/mq

Flip Chip COB

120*90 dots

152.4*114.3 mm

129600 dots

609.6*342.9*49 mm

6.8 Kg

800 cd/mq

170°(H)/170°(V)

500 W/mq

166 W/mq

AC100-240V

3840 Hz

Front Service

EOCT

IP54

Fm UHD+ 1.5 UNIFMUHD+1.5-6034-F1

1.58 mm

396801 dot/mq

Flip Chip COB

96*72 dots

152.4*114.3 mm

82944 dots

609.6*342.9*49 mm

6.8 Kg

800 cd/mq

170°(H)/170°(V)

500 W/mq

166 W/mq

AC100-240V

3840 Hz

Front Service

EOCT

IP54

Fm UHD+ 1.9 UNIFMUHD+1.9-6034-F1

1.9 mm

275556 dot/mq

Flip Chip COB

80*60 dots

152.4*114.3 mm

57600 dots

609.6*342.9*49 mm

6.8 Kg

800 cd/mq

170°(H)/170°(V)

500 W/mq

166 W/mq

AC100-240V

3840 Hz

Front Service

EOCT

IP54
