Rental

R series

Indoor

Indoor Led display, curvabile, protezione superficiale EOCT e ECBT.

Vai al Configuratore

Caratteristiche.

Curved Splicing

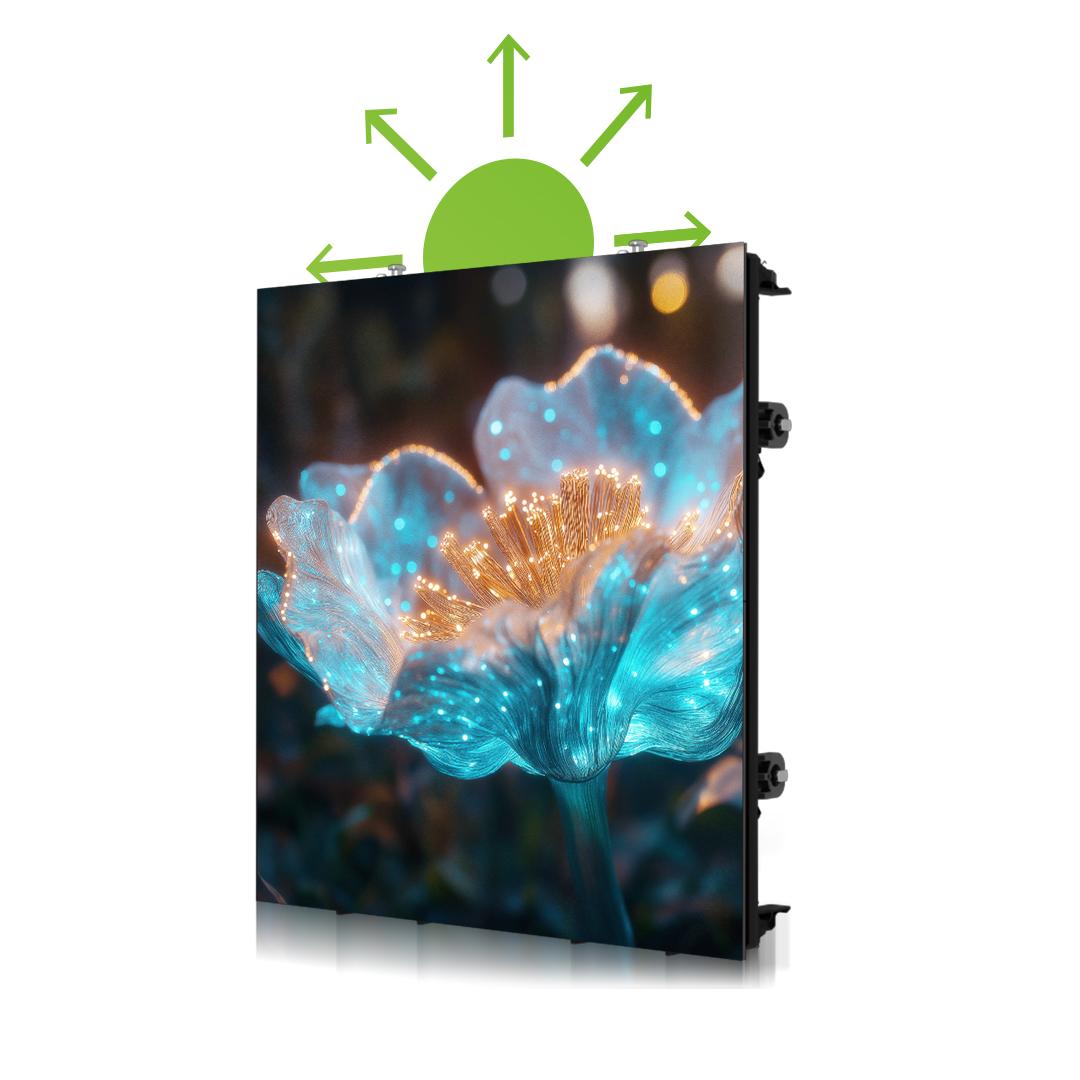

High Brightness
Right Angle Splicing
High Refresh Rate

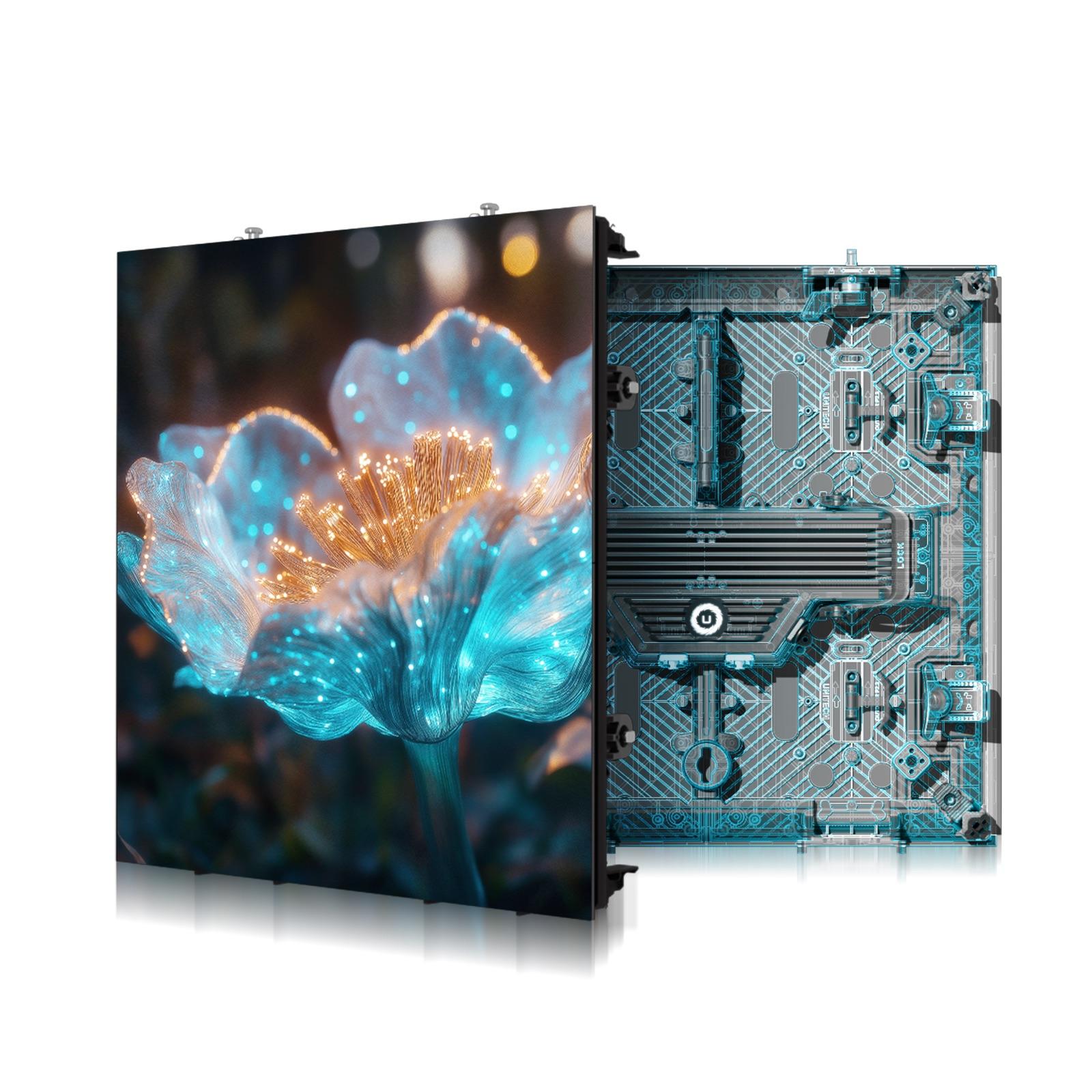

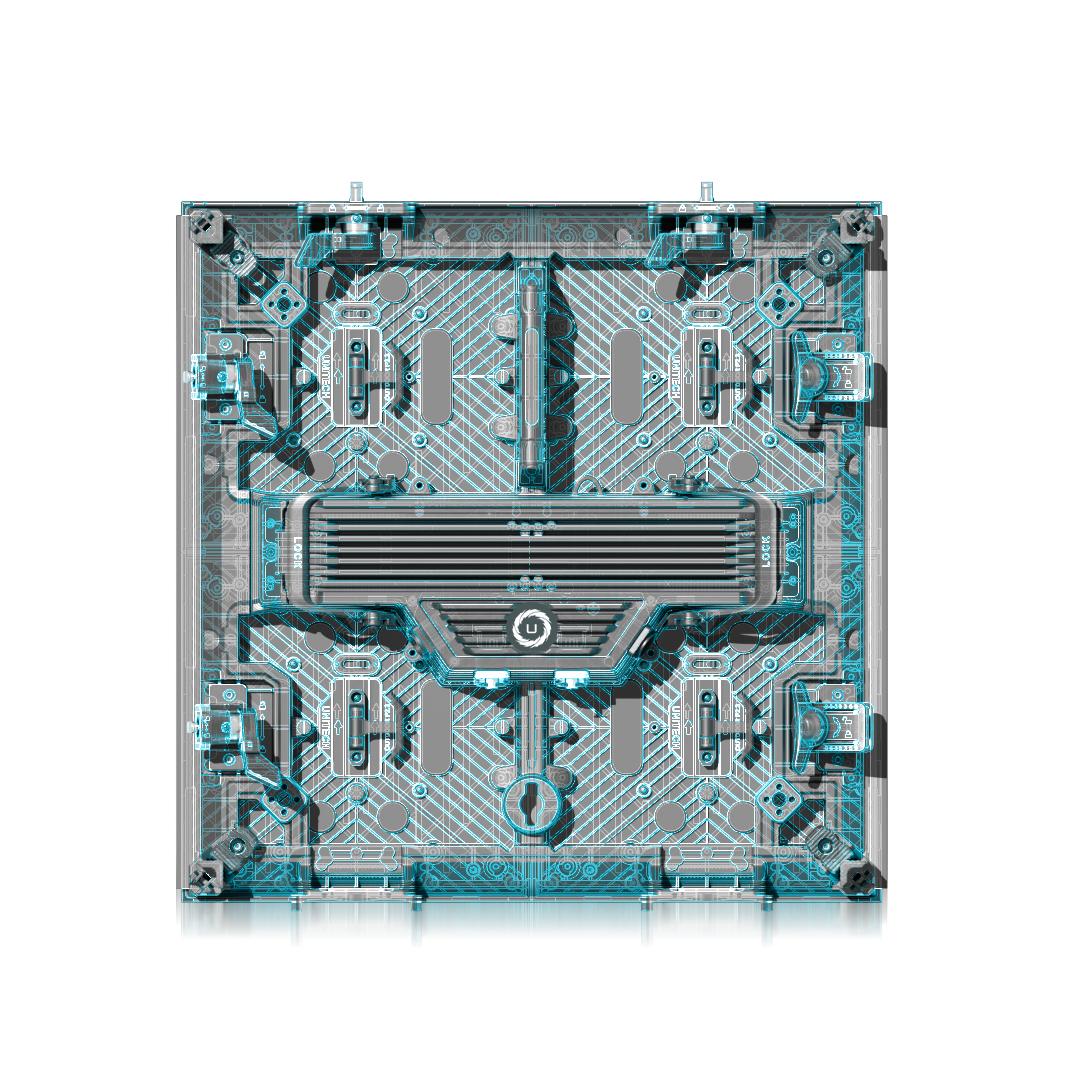

Front & Back maintenance
Surface Protection EOCT
Surface Protection ECBT

Specifiche.

R 2.3 EOCT UNIR2.3EOCT-5050

R 2.3 ECBT UNIR2.3ECBT-5050

R 2.6 EOCT UNIR2.6EOCT-5050

R 2.6 ECBT UNIR2.6ECBT-5050

Titolo

Pixel Pitch

Pixel Density

Led Type

Module Resolution

Module Size

Cabinet Resolution

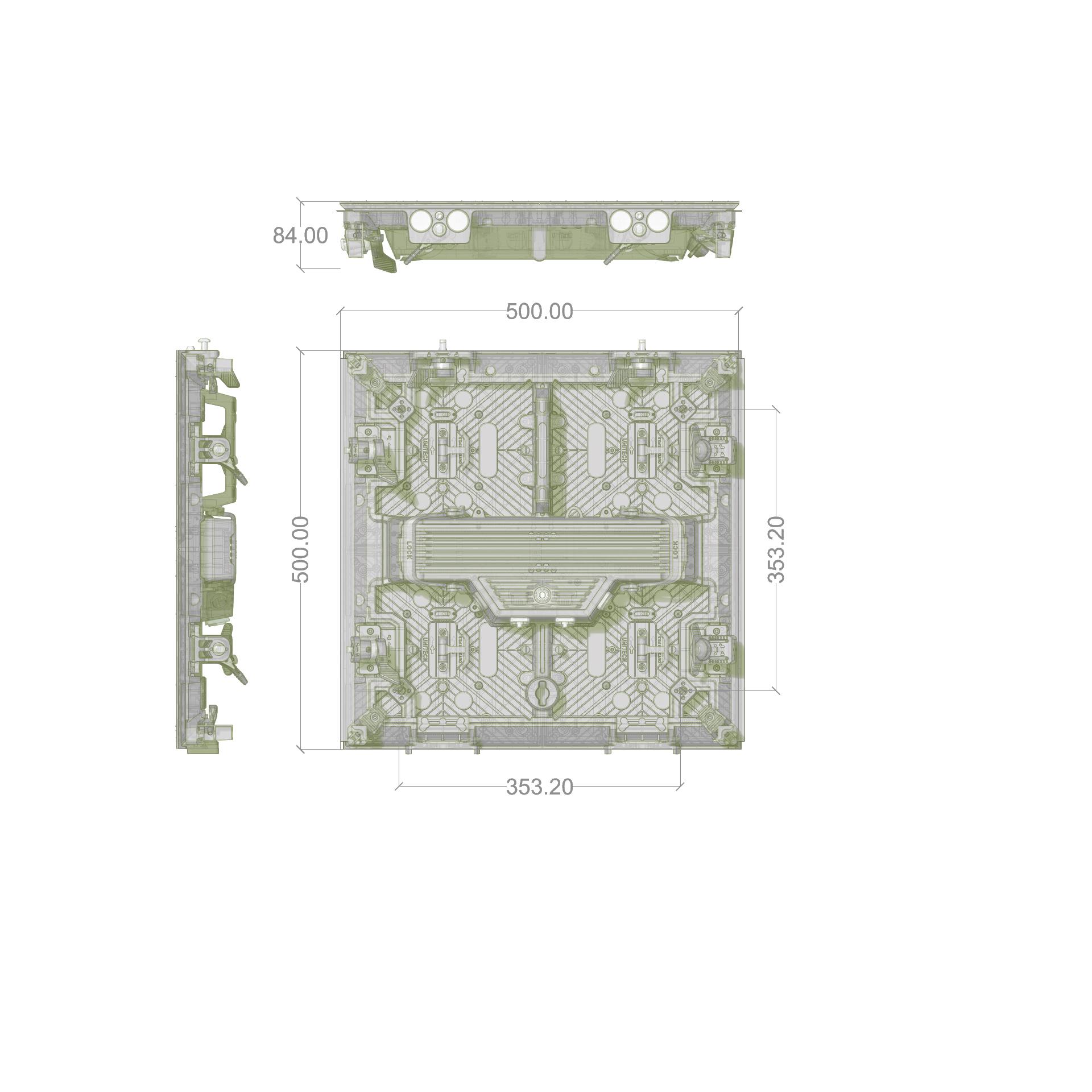

Cabinet Size

Cabinet Weight

Brightness

View Angle

Max Power Consumption

Ave. Power Consumption

Input Voltage

Radius of bending

Refresh Rate

Gray Scale

Scan Model

Installation Method

Surface Protection

IP Level

R 2.3 EOCT UNIR2.3EOCT-5050

2.314

186624 dot/mq

SMD1212

108*108 dots

250*250 mm

46656 dots

500*500*84 mm

8.5 Kg

1100-1300 cd/mq

140°(O)/140°(V)

640 W/mq

200 W/mq

AC110/220V/380V

0°,+/-3°,+/-6°,+/-9°,+90°

7680 Hz@14bit ; 3860@16bit

14-16 bit

1/21

Front/Back Service

EOCT

IP55

R 2.3 ECBT UNIR2.3ECBT-5050

2.314 mm

186624 dots/mq

SMD1212

108*108 dots

250*250 mm

46656 dots

500*500*84 mm

8.5 Kg

1100-1300 cd/mq

140°(O)/140°(V)

640 W/mq

200 W/mq

AC110/220V/380V

0°,+/-3°,+/-6°,+/-9°,+90°

7680 Hz@14bit ; 3860@16bit

14-16 bit

1/21

Front/Back Service

ECBT

IP55

R 2.6 EOCT UNIR2.6EOCT-5050

2.604 mm

147456 dots/mq

SMD1212

96*96 dots

250*250 mm

36864 dots

500*500*84 mm

8.5 Kg

1100-1300 cd/mq

140°(O)/140°(V)

640 W/mq

200 W/mq

AC110/220V/380V

0°,+/-3°,+/-6°,+/-9°,+90°

3840 - 7680 Hz

14-16 bit

1/16

Front Service

EOCT

IP55

R 2.6 ECBT UNIR2.6ECBT-5050

2.604 mm

147456 dots/mq

SMD1212

96*96 dots

250*250 mm

36864 dots

500*500*84 mm

8.5 Kg

1100-1300 cd/mq

140°(O)/140°(V)

640 W/mq

200 W/mq

AC110/220V/380V

0°,+/-3°,+/-6°,+/-9°,+90°

3840 - 7680 Hz

14-16 bit

1/16

Front/Back Service

ECBT

IP55

Chiedi più info

Applicazioni.

Event

Event

Exhibition

Exhibition

Installation

Installation

Live show

Live show

TV Studio

TV Studio
